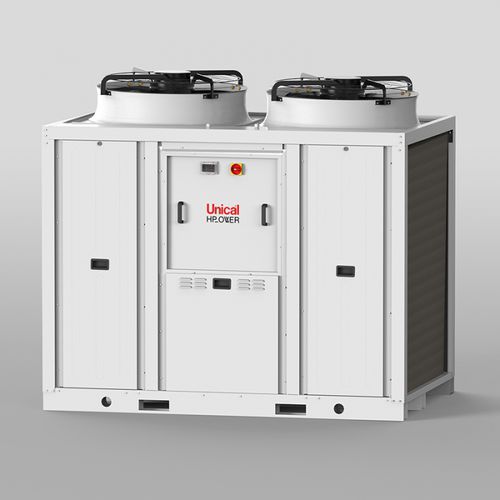

Air/water heat pump HP_OWER 1150 N

air/water heat pump
air/water heat pump
air/water heat pump
air/water heat pump
Add to favorites
Compare this product


Interior/exterior unit
Class A+
Heat output

108.28 kW, 111.47 kW

Cooling power

114.3 kW, 139.3 kW

Noise level

53 dB, 83 dB

Exterior unit height

2,010 mm
(79 in)

Exterior unit width

2,250 mm
(89 in)

Exterior unit depth

1,450 mm
(57 in)


High efficiency air-water DC INVERTER heat pump with very high shutting and double refrigerant circuit, R410A refrigerant, fully wired and pre-assembled, designed for heating, cooling and DHW preparation. Outdoor installation, resistant to atmospheric agents thanks to the hot-dip galvanized sheet and painted, after processing, with polyurethane powders in the oven at 180 °C. “Full inverter” Air-Water heat pump High efficiency, Energy Class A+ C.O.P. = 3.90 E.E.R. = 3.65 Extraordinary 1:16 modulation ratio to optimize operating consumption Double refrigerant circuit, powered by 6 scroll compressors that ensure reliability and operating safety even in the event of a component failure, avoiding the complete blocking of the machine Possibility to configure up to 7 machines in cascade Sequential defrosting of the circuits to avoid downtime Intelligent electronics that equally shares the operation hours of the compressors, increasing the useful life of the system LN silencing as standard, consisting of soundproofed compressor housing, guarantee of reduced noise emissions Standard antifreeze kit to optimize the operation of the heat pump in unfavorable temperature conditions, consisting of low absorption heating cables with automatic management and pre-wired electrical connection Low energy consumption DC INVERTER fan motors Resistance to atmospheric agents guaranteed by galvanized sheet metal casing and polyurethane painting Air-gas exchanger in copper pipes and aluminium fins. Geometrically designed to have the highest heat exchange and lowest pressure drops
