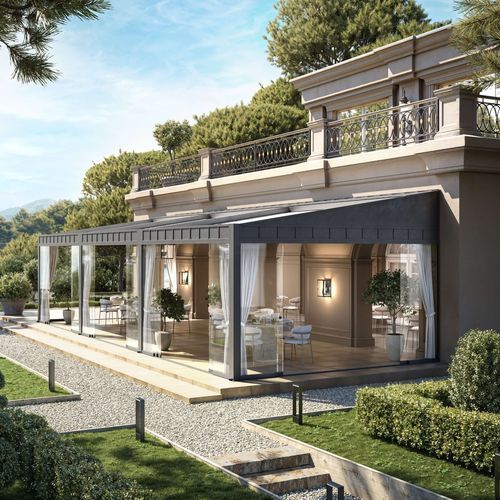

Wall-mounted pergola TIMELESS ELETTRA

PVCaluminumgalvanised steel

Short description
Wall-mounted steel pergola Timeless Elettra with motorised retractable PVC Opatex Pro roof and frameless sliding glass enclosures in 10 mm tempered glass.

Overview
Timeless Elettra is designed to integrate architectural facades and landscape continuity while enabling year-round use. The combination of a motorised retractable roof and frameless sliding glass panels provides weather protection, controlled transparency and flexible spatial use for residential and commercial projects.

Design and materials
The supporting structure is machined steel with hot-dip galvanising and a UV-resistant polyester epoxy powder coat. The roof is a motorised Opatex Pro PVC membrane, tensioned and guided on aluminium rails with integrated windbreaks. An optional fabric ceiling improves aesthetics and acoustic behaviour. Frameless sliding glass panels use 10 mm tempered glass with bottom-weighted guidance for maximum transparency.

Configuration and use
Modular system for single or multi-bay installations. Depths available from 3 to 6 m and widths up to 9 m, suitable for terraces, verandas, restaurants and hotel outdoor areas. Opening options include central or side sliding configurations and different handle or locking systems.

Accessories

• Corrugated galvanised sheet canopy to protect the roof in the stored position
• Decorated frontal beam available in three variants, also with PVC interior infill
• Side curtains in acrylic or PVC with windproof zip or sliding systems
• Post-cover curtains and curtain hold-down profiles
• Protective hoods for the roof covering
• Vertical shade roller blind with manual winch and cables in Soltis Lounge 96 or recycled acrylic Raytent Shade, also available motorised
• Vertical roller blind in PVC Cristal with windproof zip system, 114 mm headbox, manual or motorised
• Frameless all-glass sliding system without vertical profiles, bottom-weighted panels

Colours and fabrics
Powder coating in polyester epoxy available in a broad range of standard colours; custom colours on request. Roof membrane Opatex Pro available in white or champagne; fabric samples and finishes include anthracite, tundra, taupe, mars, brown, black, white 9010, oyster white 1013 and satin.

Applications
Designed to be mounted against existing buildings, Timeless Elettra integrates with terraces, porticoes and verandas to create covered, light-filled areas that preserve visual connection with the landscape. Suitable for residential use and hospitality or contract projects.

Technical specifications

• Main structure: wall-mounted machined steel with hot-dip galvanising
• Coating: UV-resistant polyester epoxy powder coating
• Standard colours: 9 standard colours; custom colours available
• Maximum module size: up to 600 x 600 cm (custom)
• Pillar section: 120 x 120 mm
• Front beam height: 300 mm
• Front beam decoration: three variants available
• Roof covering: waterproof PVC Opatex Pro, motorised retractable, white or champagne
• Roof operation: motorised, remote control; quick-release system for rear pocket inspection
• Drainage: roof slope with perimeter gutters and internal downpipes integrated in pillars
• Glass enclosures: frameless sliding panels without vertical profiles, bottom-weighted, 10 mm tempered glass
• Openings: central or side openings; optional foot-operated handles or locking systems
• Configuration: single or multi-bay; depths 3–6 m; widths up to 9 m
• Accessories: side curtains, vertical roller blinds (manual or motorised), protective canopies, decorative beams, frameless all-glass systems
