Hot water underfloor heating MINITEC

residentialcommercialwith acoustic insulation

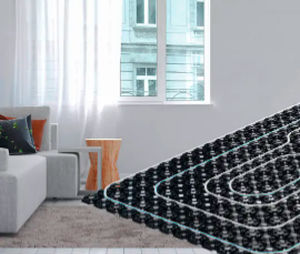

Thanks to its minimal depth of around 1 cm, Uponor Minitec is the perfect system for renovation projects. The Uponor Minitec sheeting element, with the Uponor PE-Xa pipes measuring 9.9x1.1 mm, is easy to lay on existing screed, timber or tiles. The adhesive layer on the back of the sheet guarantees a secure bond during installation. The levelling layer is installed just above the studs, resulting in an increase in floor height of only 16 mm. Minitec is also possible to be installed with defined floor insulation materials. The special design of the sheeting elements ensures that the levelling compounds flow well and can bond directly with the substrate. Application areas: Radiant underfloor heating and cooling Wet installation Residential and commercial applications For use with qualified filler materials Reduced bills – Save 62 kWh pear year by installing underfloor heating High comfort standard – it is 60% quicker to warm up than standard UFH systems Easily fits around obstacles – the Minitec system can easily fit around obstacles and there is no need to move door frames 3 days installation process – your system (including floor installation) will be fully completed in 3 days and ready to walk on after 34 hours Uponor warranty – Uponor extended warranty by local regulations One man installation – Jointing with the proved Q+E technology Suitable for all room geometries and a range of components are available for doorways/adjoining walls No over boarding required – simply lay the desired floor finish on top Rapid installation time – panel can be covered with a floor surface after 2 days Compatible with a wide range of fillers
