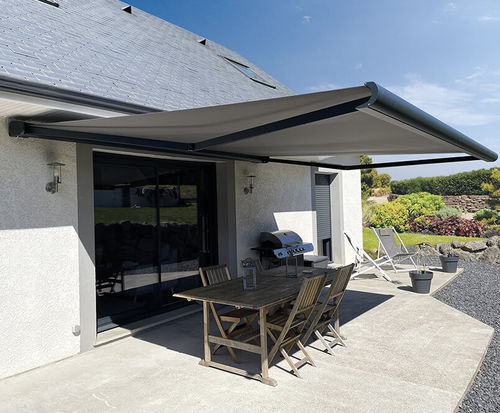

Box awning 131

manualcommercialpatio

MANUAL CANVAS AWNING WITH CRANK HANDLE, CUSTOM-MADE 131 INTEGRAL BOX. - Maximum width: 6000mm, - Max. projection: 350mm, - Professional solution-dyed acrylic fabric (color impregnated into the fiber during manufacture), - Choice of fabric type, many colors and weights: Toile acrylique UO 260 gr/m², Toile acrylique UO Best 330 gr/m², Toile acrylique UO Plus 300 gr/m², Toile acrylique Dickson Orchestra 290 gr/m², Toile acrylique Dickson Orchestra Max 320 gr/m², - Unlimited structure colors (choice of universal RAL), - Structure in lacquered extruded aluminum, - Can be installed on facades or ceilings by pivoting the mounting brackets during assembly, - Adjustable tilt from 0° to 50° for fronts and 10° to 80° for ceilings, - Radio or wired motorized operation, - Extruded aluminum arm with double independent Ø4 mm stainless steel cables protected by an insulating sheath, - Arm thrust: 36KG per arm; Arm cross-section: 65mm x 60mm, - Box height: 135mm, - Gap between overall dimensions of box and wall-mounting bracket: 47mm, - Mounting brackets: 18mm inward clearance possible across width, - Extruded aluminum winding tube, diameter 79mm, - Extrusion thickness: 1.8mm to 2mm (depending on profile), - Tensioning system ensures taut fabric when rolled up and down, - Approximate weight for a 6m x 3.5m awning: +/- 80 KG. - Made in France, - 5-year warranty,
