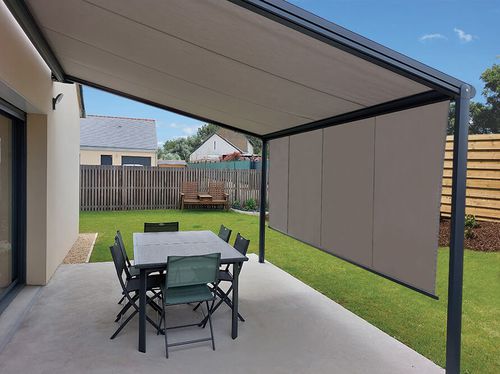

Awning with post 244

boxmotorizedcommercial

MOTORIZED ACRYLIC FABRIC AWNING WITH ROLLER VALANCE CUSTOM-MADE 135 -Manual or electric retractable valance - Max. projection: 4000mm - Max. width: 4000mm - Unlimited structural colors (choice of universal RAL) Professional solution-dyed acrylic fabric (color impregnated into the fiber during manufacture) - Choice of fabric type, many colors and weights: Toile acrylique UO 260 gr/m², Toile acrylique UO Best 330 gr/m², Toile acrylique UO Plus 300 gr/m², Toile acrylique Dickson Orchestra 290 gr/m², Toile acrylique Dickson Orchestra Max 320 gr/m², Toile micro-perforée Dickson - Connecting seam (width) from 1.20m - Depth-adjustable posts - Leg height 2500 mm (can be cut to size) - Reinforced extruded aluminum structure with independent double sheathed cable - Extrusion thickness: 1.5 to 2.5mm (depending on profile) - Front or ceiling mounting by rotating mounting brackets during assembly - Wired or radio motorization - Floor mounting bracket - 100% waterproof lip seal on guides and final blade - Box height: 140 mm (front-mounted) or 170 mm (ceiling-mounted) - Gap between overall dimensions of box and wall-mounting bracket: 47mm - Mounting brackets: 18 mm inward clearance possible across width - Extruded aluminum winding tube, diameter 79mm - Extrusion thickness: 1.8 to 2 mm (depending on profile)
