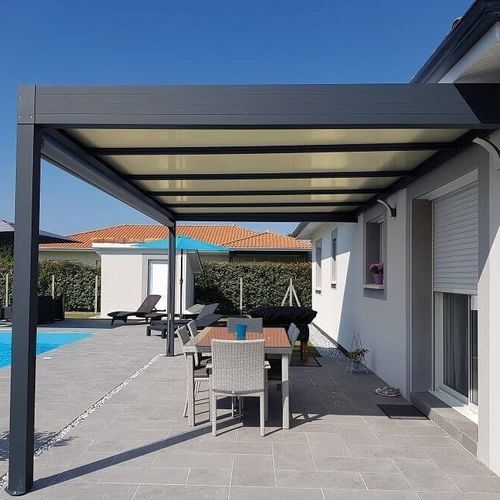

Wall-mounted pergola H3

extruded aluminumflat roofsandwich panel canopy

H3 ALUMINUM PERGOLA FLAT ROOF THERMOTOP SANDWICH PANELS 32MM INSULATION CUSTOM-BUILT BACK-TO-BACK - Max. projection: 5000mm, - Maximum width: 6260mm, - Total width unlimited in several modules, - Extruded aluminum structure, - Unlimited structure colors (choice of universal RAL), - Extrusion thickness: 2mm to 3mm (depending on profile), - Fixed roof in 32mm thick thermotop sandwich panel, - 100% waterproof roof, - Feet 115mm x 115mm, height 2500mm (can be cut to size), - Posts up to 3000mm possible, - Floor mounting bracket, - Wall and floor mounting, - Stainless steel screws, - Wall mounting, - Wall profile height 260mm, - 100% opaque panels, - Water drainage through support beam, - Horizontal structure, 1cm/m slope inside the structure (water drainage), - Approximate weight for a 5m x 4m pergola +/- 500KG, - Made in France, - 5-year warranty, - Free delivery in metropolitan France, - Lead time 8 to 10 weeks, - Factory-direct prices.
