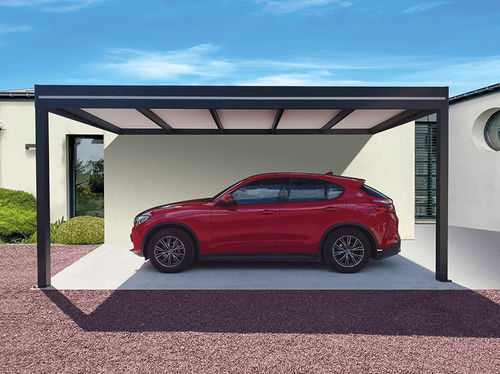

Custom-made carport 1952

with built-in lightingsandwich panel canopyaluminum

ALUMINUM CARPORT FLAT ROOF INSULATED SANDWICH PANELS 16MM (WITH OR WITHOUT SKYLIGHT) CUSTOM-BUILT BACK-TO-BACK OBX - Max. projection: 5000mm, - Max. 2-post width: 6000mm, - Total width unlimited with several modules, - Extruded aluminum structure, - Unlimited structure colors (choice of universal RAL), - Extrusion thickness: +/- 2mm (depending on profile), - Fixed roof in 16mm sandwich panel, - 100% waterproof roof, - Post section 120mm x 120mm, - Post heights up to 3400mm possible, - Floor mounting bracket, - Wall and floor mounting, - Stainless steel screws, - Wall mounting, - Wall profile height 192mm, - Height of side and front beams 320mm, - 100% opaque panels, - Water drainage through the supporting beam, - Horizontal structure, sheet inclination between 3 and 6% inside the structure (water drainage), - Approximate weight for a 5m x 4m carport +/- 500KG, - Made in France, - 20-year warranty,
