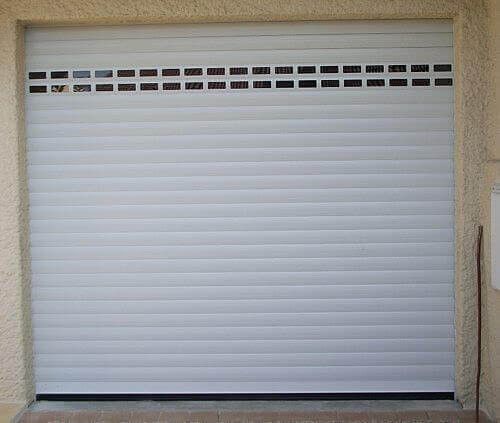

Thermo-lacquered aluminum garage door Moteur SOMFYlouvreroll-uppolyurethane foam
Add to favorites
Compare this product
Characteristics
- Opening system
- roll-up, louvre
- Material
- thermo-lacquered aluminum, polyurethane foam
- Control
- automatic
- Options
- insulated, semi-glazed
- Lenght
Max.: 4,000 mm
(157 in)Min.: 700 mm
(28 in)- Height
Max.: 2,800 mm
(110 in)Min.: 1,800 mm
(71 in)
Description
ELECTRIC ROLLING GARAGE DOOR (SOMFY MOTOR) WITH ALUMINUM PORTHOLES CUSTOM 77MM SLATS
- Minimum height: 1800mm,
- Maximum height: 3100mm,
- Minimum width: 700mm,
- Maximum width: 4000mm,
- Non-perforated aluminum curtain DP 77mm: double-walled aluminum slats and polyurethane foam 77mm x 19mm,
- SOMFY motorization,
- Automatic locks,
- Extruded aluminum slides 95mm x 34mm,
- Chest section 300mm x 300mm,
- Space required for the lintel drop: 300mm,
- Clearance for left jamb: 95mm; right jamb: 95mm,
- Foam density: 90KG/m3,
- Black rubber seal under the final blade 9mm wide and 14mm thick,
- Winding tube diameter 70,
- Power 65 Newtons,
- Compliant with the current European standard EN-13-241-1 + NF Certified,
- Approximate weight for a 4m x 2.5m door +/- 80KG,
- French manufacturing,
- 5-year warranty,
- Free delivery in mainland France,
- Indicative delivery time 4 to 6 weeks,
