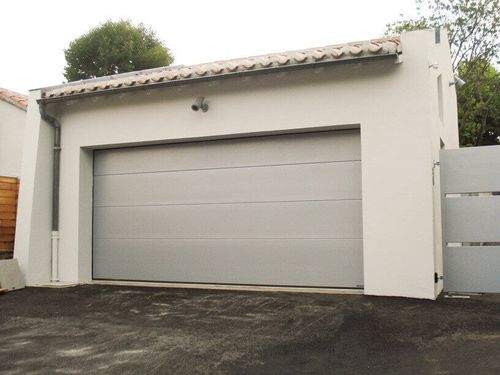

Sectional garage door VILLAsteelpolyurethane foamautomatic
Add to favorites
Compare this product
Characteristics
- Opening system
- sectional
- Material
- steel, polyurethane foam
- Control
- automatic, manual
- Options
- insulated, custom-made, waterproof
- Number of leaves
- 1 leaf
- Lenght
Max.: 5,500 mm
(217 in)Min.: 1,800 mm
(71 in)- Height
Max.: 3,000 mm
(118 in)Min.: 1,800 mm
(71 in)
Description
ELECTRIC SECTIONAL GARAGE DOOR (SOMFY OR SOMMER MOTOR) OR MANUAL INSULATED STEEL PANELS 40MM CUSTOM EXTENSION SPRING
- Minimum height 1800mm,
- Maximum height 3000mm,
- Minimum width 1800mm,
- Maximum width 4000mm,
- Unlimited structure colors (universal RAL of your choice),
- Motorization of your choice: SOMFY, SOMMER, or manual,
- Models available: RT200 or RE100mm,
- Manual version: direct pull operation,
- Electric version: engine disengagement in case of power failure,
- VILLA range door,
- U-value: 0.51W/m²K,
- Minimum width of left jamb: 90mm; right jamb: 90mm,
- 100% foam panel,
- Double-faced steel panel,
- Double-lipped rubber seal under the bottom panel,
- Engine disengagement in case of power failure,
- Panel thickness 40mm,
- Finger pinch prevention hinge,
- Spring-loaded parachute,
- Anti-lift
- Brush seal system,
- Compliant with the current European standard EN-13-241-1 + NF Certified,
- Approximate weight for a 5m x 2.5m door: leaf 157KG, total 212KG,
- Approximate weight for a 3m x 2m door: leaf 72KG, total 114KG,
- Approximate weight for a 4m x 3m door: leaf 130KG, total 206KG,
- French manufacturing,
- 10-year warranty,
- Free delivery in mainland France,
- Indicative delivery time 2 to 4 weeks,
