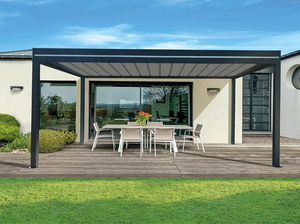

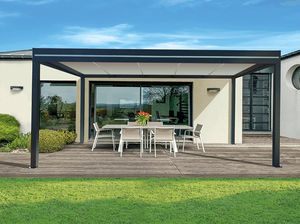

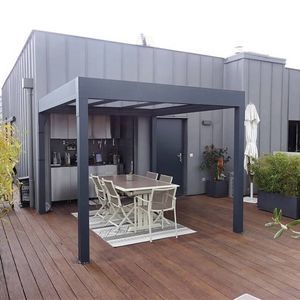

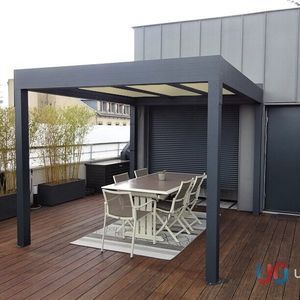

Self-supporting pergola

extruded aluminumflat roofcustom

ALUMINIUM PERGOLA FLAT ROOF INSULATED SANDWICH PANELS 16MM (WITH OR WITHOUT SKYLIGHT) OBX AUTIPORTÉE SUR MESURE - Max. projection: 5000mm, - Max. width of 4 posts: 7000mm, - Total width: 12000mm, - Unlimited structural colors (choice of universal RAL) at no extra cost, - Extruded aluminum structure, - Extrusion thickness: between 2mm and 2.5mm (depending on profile), - Fixed roof in 16mm sandwich panel, - 100% waterproof roof, - Post section: 130mm x 130mm, - Post heights up to 3400mm possible, - Floor mounting brackets, - Self-supporting installation on the ground, - Stainless steel screws, - Floor-mounted, - Peripheral beam height 300mm, - 100% opaque panels, - Water drainage through the supporting beam, - Horizontal structure, slope of plates between 3% and 6% inside the structure (water drainage), - Approximate weight for a 5m x 4m pergola +/- 500KG, - Made in France, - 25-year warranty, - Free delivery in metropolitan France, - Lead time 5 to 7 weeks, - Factory-direct prices.
