Swing gate Gwenaëlle aluminumlouveredmotorized
Add to favorites
Compare this product
Characteristics
- Opening system
- swing
- Material
- aluminum
- Configuration
- louvered
- Technical characteristics...
- motorized, manual
- Options
- custom
- Color
- green, gray, black, white, blue, red, brown, beige, anthracite
- Market
- home
- Length
Min.: 2,000 mm
(78.74 in)Max.: 5,000 mm
(196.85 in)- Height
Min.: 800 mm
(31.5 in)Max.: 2,000 mm
(78.74 in)
Description

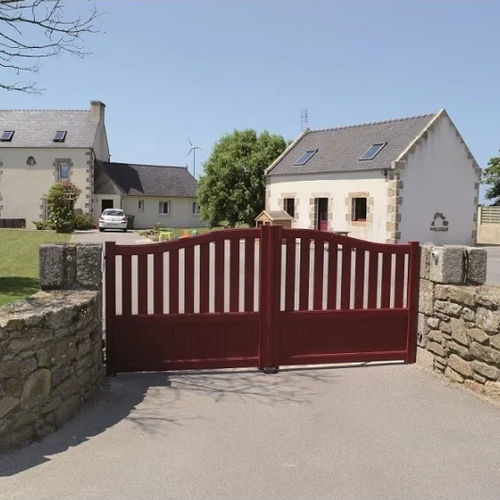

Gwenaëlle Chapeau de Gendarme & 2/3 Ajouré Vertical Manual or Motorized (Somfy or Nice) Custom-built aluminum swing gate
- Minimum height: 800mm,
- Max. height: 2000mm,
- Minimum width: 2000mm,
- Max width: 5000mm,
- Unlimited structural colors (choice of universal RAL),
- Aluminum gate,
- Upright: 93mm x 60mm,
- Approximate weight for a 4m x 1.5m gate: +/- 130KG,
- Mortise and tenon assembly (fully removable),
- Recessed lock, 3-key handle,
- Multi-position adjustable hinges lacquered in the same color,
- Handle + aluminium-lacquered escutcheon in same color,
- Aluminum blackout profile, same color,
- Aluminum end cap, same color,
- Top and bottom hinges with aluminum fairing in same color + 16 mm diameter stainless steel pin,
- Central polyamide shoe with compensating wedge,
- Sealed stops,
- Horizontal adjustment travel 20mm,
- Complies with current European standard EN-13-241-1,
- NF certified,
- Made in France,
- 15-year warranty,
- Free delivery in metropolitan France,
- Indicative delivery time 8 to 9 weeks,
