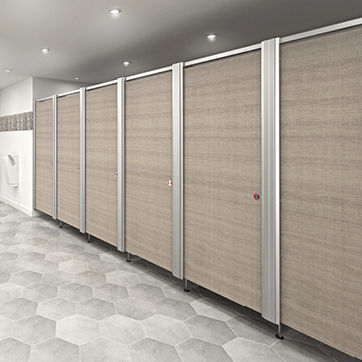

Toilet cubicle SYSTEM M

HPLanodized aluminumfor public building

A unique, robust cubicle range with a patented, simple to operate, rapid release door system. Emergency access in 30 seconds. Designed to comply with the Document M regulation, System M has a proven track record of being able to cope with the demands of high traffic environments; in particular airports, retail outlets and public buildings, such as schools and hospitals. The innovative pivoting pilaster design allows the door to be opened outwards gaining fast access to a patient without the use of tools. Resetting is simple with no replacement parts and no compromise to this stylish design. Features • Award winning, patented emergency access system. • Suitable for high traffic areas. • Attractive satin anodised aluminium pilasters and headrail. • Simple to release and reset, without tools or damage to the cubicle. • Complies with Document M, DDA and SSLD-3 regulations. • Floating appearance. Product specifications Dimensions Standard height 2120mm. Maximum depth 2068mm. Floor clearance 150mm. Minimum ceiling clearance 100mm. Performance HPL System M cubicle partitions are manufactured in 26mm medium density fibreboard (MDF) faced both sides with high pressure laminate (HPL) and lipped with ABS. For more heavily used washrooms, panels are heat, scratch and impact resistant. SGL Doors are manufactured in 13mm solid grade laminate (SGL) with radiused edges. Solid grade laminate is extremely resistant to impact and all surfaces are impervious to water.
