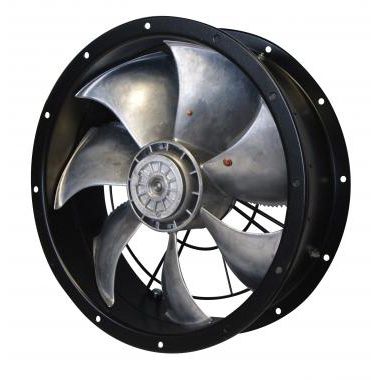

Axial fan VSC SERIES

ductindustrialsteel

• Swept impeller with Aerofoil blades, winglets and serrated trailing edge for optimum performance • One shot die cast impeller, dynamically balanced for smoother operation • Operating temperature up to 70°C • External Rotor Motors on all models for compact efficient design • All models speed controllable • Guards fitted as standard on all models • Thermal Overload Protection for motor protection • Maintenance free sealed for life bearings • 2 Year Guarantee The latest generation of the Vent-Axia Sabre® Sickle Short Case fans incorporate the very latest FE2 Owlett impeller offering improved performance over the previous ranges with up to 7dB(A) reduction in sound and up to 15% improvement in efficiency ensuring the best available fan performance in its class. The advanced blade design is matched to a purpose designed external rotor motor to ensure unrivalled reliability and controllability. Design and Development Using a combination of NASA research into wing performance and winglets, coupled with a study of bird flight has enabled the development of the best available Sickle blade profile. Matching this to a purpose designed close fitting casing ensures best use of this blade technology thereby reducing noise and improving the performance in cased axial fans. Construction The Sabre® Sickle Short Case fan range share the same case lengths as the Euroseries Cased axial range making them fully interchangeable and compatible with the full range of Vent-Axia Accessories. The strong and compact short case is constructed from rolled steel plate and protected with a tough, epoxy paint finish. Casing dimensions are to DIN 24151 and flange dimensions are to ISO 6580.
