Product features:
dedicated to heating or cooling
dedicated also to low-temperature heating systems
save supply electric current 24V
equipped with condensation dip-tray
dedicated solutions for the BMS
compliant with EN-16430
Basic sizes:
Trench height: 140, 180 mm
Trench width: 350 mm
Trench length (Lk): 800÷3250 mm
Non- standard (NS) heater lengths are available on request.

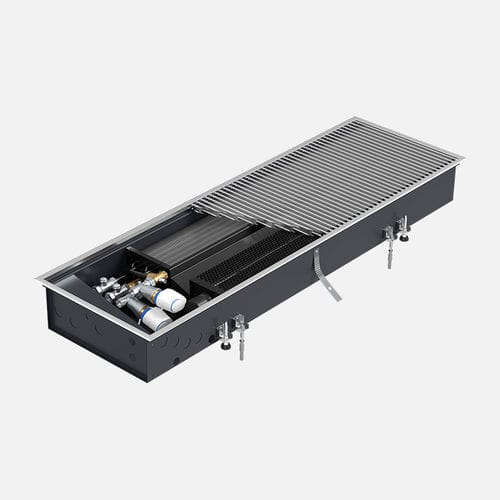

CVK4 Climaconvectors are heating and/or cooling unitary products that are designed for installing them in-floor, the most commonly alongside the fully glazed outer walls and facades of the building. Thanks to blowing the hot air during the winter time and the cold air during the summertime. Thanks to that they keep the appropriate micro-climate in the dedicated rooms. CVK4 Climaconvectors include two separate pipe and connection circuits – two for heating installation, another two for chilled water installation.
Thanks to the highly efficient coil heat exchanger that is used for heating and for cooling and the fan itself that is made in EC technology and supplied with the H&S 24V DC those units are considered as ideal for any low water temperature applications for example installation fed by the heat pumps.
The dedicated system for the units controls, wireless controllers or the solutions that allows connecting CVK Climaconvectors to the BMS system that are based on the BACnet, KNX or Modbus protocols make the Climaconvector workable in any building environment, independently to planned and maintained installation regulation and balancing system.
