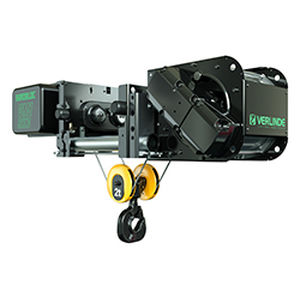

Electric cable hoist EUROBLOC VM ESSENTIAL

2-speed

Electric wire rope hoists for loads of 2,000 to 20,000 kg VERLINDE has always been in the vanguard for innovative ideas and designs for lifting units with hooks (over 70 patents filed in France and world-wide). The new EUROBLOC VT electric wire rope hoist has been designed based on VT type, but with a willingness to propose technical features that correspond to the most common demands of our clientele in order to focus on the essentials. Safety Electro mecanical load limiter deliver as standard (Mandatory equipment according “Machinery“ directive). Hoisting limit switch. 2 travelling speed. Galvanized wire rope, high safety factor (Coef. 4,6 in 2m group). 2 step travelling limit switch. IP 55 protection on electric cubicle, oversize dimensions to place and protect all components. Low voltage control (48 V) for higher safety. Rotating hook with safety latch. Complete documentation pack (hoist test certificate, hook and wire rope certificate, electric diagram, CE certificate). Savings (use/maintenance) 2 travelling and hoisting speed to optimize your production process. Lifting brake designed for hoist unit lifetime in normal use. Lifetime lubricated lifting gear box. Electric cubicle offer easy access and optimize opening for maintenance operation. Cable entry are operate by plug in connector under the cubicle. Lifetime lubricated travelling gear box. Rope guide built “without spring” so that it can be more easily replaced during maintenance. Very high performance for difficult environments. Modular assembly concept to reduce number of spare parts.
