Air filtration plenum box VERT LABHVAC
Add to favorites
Compare this product
Characteristics
- Other characteristics
- for air filtration, HVAC
Description
Description
Constructed from 8/10 steel sheet, the unit ensures the airtightness required for full integration into the VERT LAB false ceiling. Available in painted steel or stainless steel, it is offered with side or top duct connections. For ventilation and air-conditioning installations, the solution includes plenums, diffusers and extract slots manufactured from panels matching the surrounding ceiling panels in appearance and performance.
Specifications
Dimensions
Dimension diagrams and detailed sizing are provided in the product documentation (see product figures).
Filter
Optional: mechanical shut-off and filter control valve
Plenums equipped with mechanical shut-off allow precise flow adjustment. The shut-off can be motorized on request.

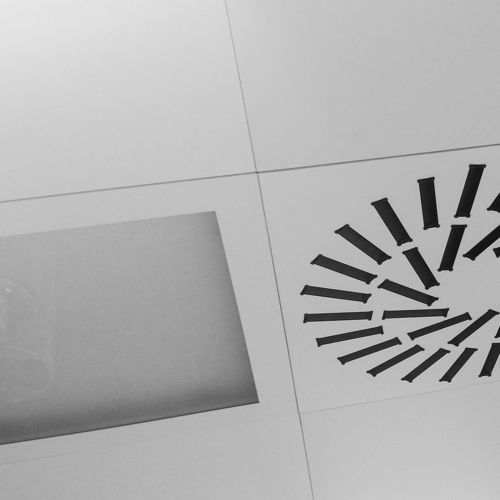

Swirl effect diffuser
Swirl-effect diffusers are available as part of the ventilation solution to ensure appropriate flow distribution.
Extract air panels
Extract air panels are available for integration into the system to manage extract airflow.
Plenum and diffuser panels for VERT LAB system installation
Plenum and diffuser panels are designed for installation within the VERT LAB system, maintaining the same aesthetic and performance characteristics as the surrounding panels.
Technical characteristics
Constructed from 8/10 steel sheet, the unit ensures the airtightness required for full integration into the VERT LAB false ceiling. Available in painted steel or stainless steel, it is offered with side or top duct connections. For ventilation and air-conditioning installations, the solution includes plenums, diffusers and extract slots manufactured from panels matching the surrounding ceiling panels in appearance and performance.
Specifications
- Refined finish and precise airtight construction
- Clinched circular connection with high-temperature resistant sealing
- Four brackets for ceiling mounting
- Slots for full integration of the diffuser panel
Dimensions
Dimension diagrams and detailed sizing are provided in the product documentation (see product figures).
Filter
Optional: mechanical shut-off and filter control valve
Plenums equipped with mechanical shut-off allow precise flow adjustment. The shut-off can be motorized on request.
Swirl effect diffuser
Swirl-effect diffusers are available as part of the ventilation solution to ensure appropriate flow distribution.
Extract air panels
Extract air panels are available for integration into the system to manage extract airflow.
Plenum and diffuser panels for VERT LAB system installation
Plenum and diffuser panels are designed for installation within the VERT LAB system, maintaining the same aesthetic and performance characteristics as the surrounding panels.
Technical characteristics
- Material: 8/10 steel sheet (stainless steel optional)
- Finishes: painted steel or stainless steel
- Connections: side or top options
- Airtightness: designed for airtight integration into VERT LAB false ceiling
- Construction: precise finish and tight assembly
- Connection detail: clinched circular connection with high-temperature resistant sealing
- Mounting: four brackets for ceiling fitting
- Diffuser integration: slots for complete diffuser panel integration
- Ventilation components: plenums, diffusers and extract slots made from matching panels
- Optional features: mechanical shut-off for flow regulation; motorization available on request
