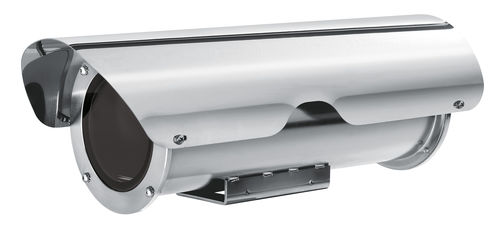

camera housing camera housing - NXM36


Made of AISI 316L electropolished stainless steel
IP66/IP68, submersible down to -40m (-130ft), equal to 4 BAR max pressure
Cylindrical body enclosed by two 6mm-thick circular flanges
2 PG13,5 cable glands nickel-plated brass for external connections
Available accessories: heater and double heater (for temperatures down to -40°C
(-40°F), camera power supply, wiper and washer pump
Internal usable area (WxHxL): 88x86x342mm (3.5x3.4x13.5in)
