PTZ security camera / dome / surface-mounted / outdoor



  • Type:


  • Configuration:


  • Installation:


  • Location:


  • Other characteristics:

    IP66, IP67

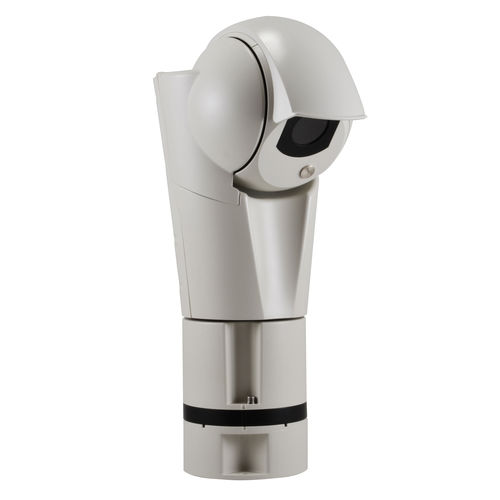

ULISSE EVO THERMAL is a PTZ thermal camera, developed to provide a preventive video surveillance system in critical infrastructures, transport, traffic, rail (in compliance with the standards for railway applications) and for fire detection.

The thermal camera offers temperature detection based on the 4 central pixels of the image and the option to send an alarm based on temperature rules. As well as this, the advanced version, can measure the temperature of a specific object at any point in the image just defining an ROI.

ULISSE EVO THERMAL maintains maximum operating efficiency with temperatures from -40°C (-40°F) to +65°C (149°F), while the levels of protection IK10, IP66/IP67/IP68, NEMA Type 4X and Type 6P guarantee maximum resistance against dust and bad weather, strong impact and vandalism.

ULISSE EVO THERMAL offers an unrivalled corrosion resistance, thanks to the special aluminum surface treatments and the technopolymer used for its construction.

The modern, linear design of ULISSE EVO THERMAL combines maximum strength and operational reliability with greatly reduced weight. This means easy and quick assembly and therefore lower installation costs and zero maintenance.

ULISSE EVO THERMAL can be installed in different ways, even in the inverted position typical of the speed domes, using the large variety of brackets and adaptors available to satisfy every installation need. The brackets are also available with quick connectors for Ethernet/PoE, for power and I/O, which allow fast and easy installation and maintenance.

ULISSE EVO THERMAL is available in two standard colours gray-white (RAL9002) or black (RAL9005) to suit specific application requirements.
