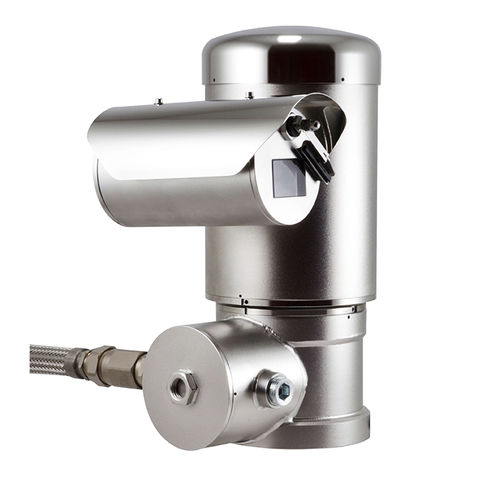

MAXIMUS MPX SERIES2 is an ex-proof Full-HD PTZ camera that is ideal for effective preventative video surveillance and process monitoring in the Oil & Gas, maritime or industrial sectors where fire or explosion hazards may exist due to the presence of flammable gases or vapors, flammable liquids or combustible dusts.
MAXIMUS MPX SERIES2 offers the highest level of corrosion resistance thanks to its solid AISI 316L stainless-steel construction and its microshot and electropolished surfaces. As well as this, the IP66/IP67/IP68/IP69, NEMA Type 4X and Type 6P certifications guarantee complete protection against water and dust. It can continue
GENERAL
AISI 316L stainless steel construction
External surfaces micro-shot peened and electro-polished
Dynamic positioning control system
MECHANICAL
Cable inputs: 2 x 3/4" NPT
Zero backlash
Horizontal rotation: 360°, continuous rotation
Vertical rotation: from -90° up to +90°
Horizontal speed (variable): from 0.1° to 100°/s
Tilt speed (variable): from 0.1° to 100°/s
Accuracy of preset positions: 0.02°
Integrated wiper
Window with extra clear tempered glass: thick 12mm (0.47in)
Unit weight: 26.5kg (58lb)
ELECTRICAL
Supply voltage/Current consumption:
230Vac ±10%, 0.5A, 50/60Hz
24Vac ±10%, 5A, 50/60Hz
120Vac ±10%, 1A, 50/60Hz
220Vac ±10%, 0.54A, 50/60Hz
100Vac ±10%, 1.2A, 50/60Hz
Power consumption:
120W max
