Air source heat pump VITOCAL 150-A
residentialoutdoormonobloc

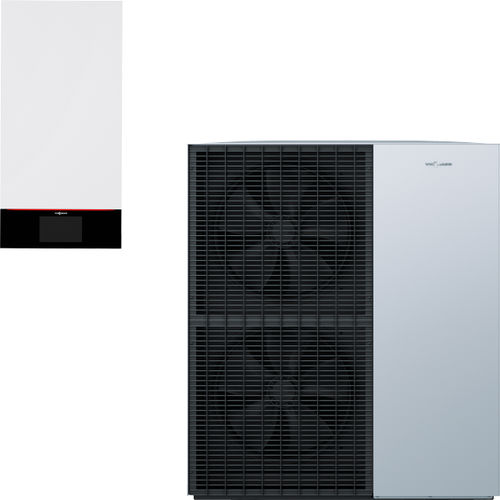

Air source heat pump - VITOCAL 150-A - VIESSMANN - residential / outdoor / monobloc
Air source heat pump - VITOCAL 150-A - VIESSMANN - residential / outdoor / monobloc
Air source heat pump - VITOCAL 150-A - VIESSMANN - residential / outdoor / monobloc - image - 2
Air source heat pump - VITOCAL 150-A - VIESSMANN - residential / outdoor / monobloc - image - 3
Air source heat pump - VITOCAL 150-A - VIESSMANN - residential / outdoor / monobloc - image - 4
Air source heat pump - VITOCAL 150-A - VIESSMANN - residential / outdoor / monobloc - image - 5
Air source heat pump - VITOCAL 150-A - VIESSMANN - residential / outdoor / monobloc - image - 6
Air source heat pump - VITOCAL 150-A - VIESSMANN - residential / outdoor / monobloc - image - 7
Add to favorites
Compare this product

Characteristics

Type
air source
Sector
residential
Interior/exterior unit
outdoor
Installation
monobloc
Function
reversible, for hot water
Certifications
Class A+
Other characteristics
hybrid, compact, energy efficiency
Heat output

Min.: 2.1 kW

Max.: 14.9 kW

Cooling power

Min.: 4 kW

Max.: 13.3 kW

Noise level

Min.: 51 dB

Max.: 55 dB

Exterior unit height

841 mm, 1,382 mm
(33.11 in, 54.41 in)

Exterior unit width

1,144 mm
(45.04 in)

Exterior unit depth

600 mm
(23.62 in)

Interior unit height

1,900 mm
(75 in)

Interior unit width

600 mm
(24 in)

Interior unit depth

597 mm
(24 in)

Description

Highly suitable for modernisation Reliable, compact and more environmentally responsible than ever – the new, innovative heat pump technology from Viessmann makes particularly efficient use of environmental energy for heating and cooling. With a flow temperature of up to 70 °C, the Vitocal 150-A was specially developed for modernisation projects. Existing radiators can continue to be used. Underfloor heating is not essential. High energy efficiency, convenient control via app, sustainable operation and attractive design are all convincing features. Vitocal 150-A Modular is the cost-effective variant specifically for systems with a heating water buffer tank and without an integrated expansion vessel. This version is particularly recommended for systems with multiple heating circuits and a separate heating water buffer tank or when using fresh water systems. Highly suitable for modernisation With 70 °C flow temperature (at an outside temperature down to -10 °C) Climate Protect +++ Natural refrigerant R290 (propane) with a particularly low GWP100 (global warming potential) of 0.02 Low running costs due to high efficiency COP (coefficient of performance) to EN 14511: up to 5.2 (at A7/W35) 60 % less space required Compared to similar models Cooling function Heating and cooling in one Integrated energy management system Ensures transparency in energy consumption and costs Easy operation via ViCare app
