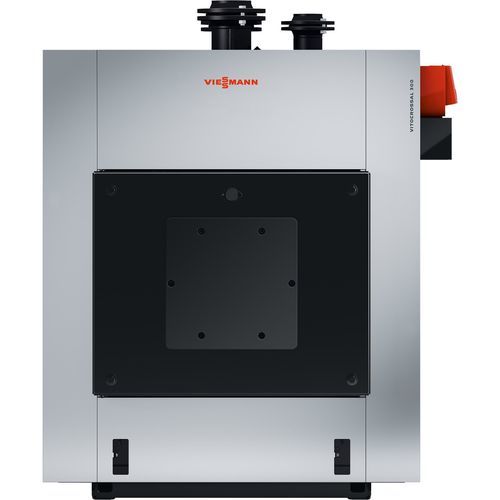

Gas boiler VITOCROSSAL 300 CR3B

for heating onlyfor industrial useresidential

Overview
The Vitocrossal 300, type CR3B, is a floorstanding gas condensing boiler with modulating output from 787 to 1400 kW. As a single‑boiler solution it is suitable for residential complexes, district heating networks, larger public and commercial buildings and industrial plants.

Key benefits

• Rated heating output: 787–1400 kW
• Standard seasonal efficiency (to DIN) up to 98 % (Hs) [gross cv]
• Inox‑Crossal stainless steel heat exchanger for corrosion resistance and long service life
• Self‑cleaning effect from smooth stainless steel surfaces
• Clean combustion via low combustion chamber loading and straight‑through chamber design
• Factory options with ELCO or Weishaupt pressure‑jet gas burners
• Split design for easier manoeuvring and installation
• Two return connectors for hydraulic connection optimised for condensing operation
• Vitotronic control with colour touchscreen and commissioning assistant
• Integral LAN and WiFi for service connectivity and internet communication

Advanced condensing technology
The Inox‑Crossal heat exchanger delivers high power density up to 1400 kW while keeping compact dimensions and reduced weight. The split construction separates the heat exchanger and combustion chamber modules for handling on site. High seasonal efficiency up to 98 % Hs is achieved by counter‑flow heat exchange and intensive turbulation of flue gases. The additional return connector supports hydraulic layouts optimised for condensing systems. Units can be supplied factory‑fitted with ELCO or Weishaupt pressure‑jet burners.

Control and connectivity
The Vitotronic control unit provides a large colour touchscreen and a commissioning assistant. The boiler includes an integral LAN interface and WiFi for the Vitosoft 300 service tool, enabling remote access and energy visualisation via the control energy cockpit.

Product details
Output (modulating): 787 to 1400 kW. Type CR3B 11/2018: output stages: 787.0; 978.0; 1100.0; 1400.0 kW
Standard seasonal efficiency (to DIN): Up to 98 % (Hs) [gross cv]
Fuel: Natural gas E, Natural gas LL and LPG
Application: Gas heating for large residential buildings, public and commercial premises, district heating networks, new build and modernisation projects
Operation: Vitotronic control unit with colour touchscreen; integral LAN interface and WiFi for service interface
DHW: Additional DHW cylinder(s) required for high DHW convenience
Additional options: ELCO or Weishaupt pressure‑jet gas burners factory‑fitted

Technical specifications

• Model family: Vitocrossal 300
• Type designation: CR3B
• Output (modulating): 787 – 1400 kW (output stages: 787.0; 978.0; 1100.0; 1400.0 kW)
• Standard seasonal efficiency: up to 98 % (Hs) [gross cv]
• Fuel compatibility: Natural gas E, Natural gas LL, LPG
• Heat exchanger: Inox‑Crossal stainless steel
• Combustion chamber: Stainless steel, straight‑through design
• Burner options: ELCO or Weishaupt pressure‑jet gas burners (factory‑fitted)
• Hydraulic connection: Two return connectors for optimised condensing operation
• Design: Split design (heat exchanger and combustion chamber modules) for easier manoeuvring
• Controls: Vitotronic control unit with colour touchscreen; commissioning assistant
• Connectivity: Integral LAN interface; integral WiFi for service interface; Vitosoft 300 communication via WiFi
• Suitable applications: Residential complexes, district heating networks, larger public and commercial buildings, industrial plants
