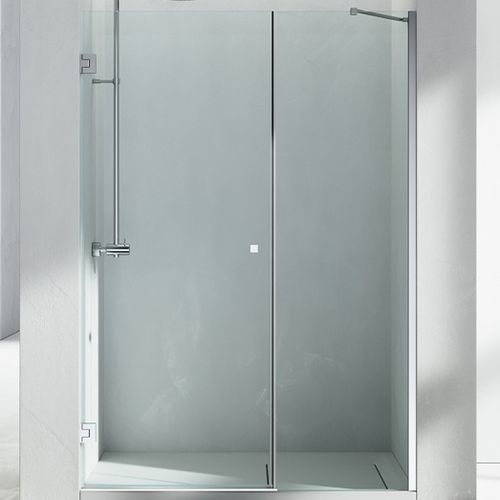

Fixed shower screen SERIE F : H2

pivotingfor alcovestempered glass

For over 90 cm wide recess. The width of the door is approximately two thirds the width of the recess, unless specified otherwise. Two magnetic gaskets provide a seal between the door and the fixed panel. No adjustment is possible for the door, meaning that it must be installed on a perfectly plumb wall. The fixed panel offers 15 mm of adjustment. The glass of the fixed panel is positioned directly on the shower tray and sealed in with silicone. An additional water-stop profile is supplied in the package, which can be used on the edge of the shower tray in order to achieve the best seal under the door. SIS™ simplified installation: a thoroughly tested system with a high-density polystyrene template ensures correct door positioning. Brass hinges with inward and outward opening. The door is held in the central (closed) position by a spring mechanism, which offers ±10° adjustment. All elements of the Serie F Collection are made to measure to the millimetre. We create unique pieces to perfectly meet the dimensional requirements of each individual shower recess. Heights greater than 210 cm or widths greater than 90 cm will require a third hinge. Visit the website www.vism.it/cmm to determine the maximum size of the door (max. height 300 cm). The doors closing is garanteed by the magnetic strips. The perfect ahesion of the magnetic elements offers the best waterproof. SIS is a system which simplifies the installation of Serie F Collection doors. This door type normally requires great care when drilling the walls, as if this is not done perfectly, it can compromise the entire shower installation.
