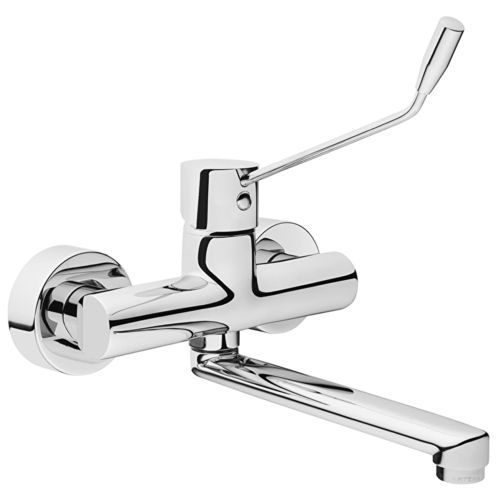

Bathroom sink mixer tap AQUAMED

wall-mountedchrome-plated brassbathroom

Product overview
The Aquamed Basin Mixer A42311WSA is a one-hole, wall-mounted basin mixer in Special Needs Chrome finish. Designed by the VitrA Design Team for accessible and healthcare washrooms, it supports double inlet supplies and integrates air mixing and an adjustable cartridge to control heat-flow and water use.

Technical specifications

• Model / Name: Aquamed Basin Mixer
• Product Code: A42311WSA
• Finish: Special Needs Chrome
• Body Material: Brass
• Installation Type: Wall mounted
• Number of Water Inlets: Double inlet
• Air mixing capability: Yes
• Cartridge: Adjustable heat-flow rate
• Outlet Length: 235 mm
• Badge Diameter: D75 mm
• Operating Pressure: Min 0.5 - Max 10 bar (Recommended 1-5 bar)
• Perlator Type: Spray
• Packaged Dimensions (W×D×H): 290 x 240 x 175 mm
• Water Efficiency Class: Dark Green (0 < Flow Rate ≤ 6)

Applications and installation notes

• Suitable for accessible bathrooms, healthcare facilities and public sanitary areas
• Wall-mounted configuration for installations with double inlet water supplies
• Air mixing and low-flow perlator support water efficiency and user safety
• Adjustable cartridge allows controlled temperature flow; routine maintenance recommended for cartridge and perlator

Available files

• Installation Manual (pdf)
• User Manual (pdf)
• BIM Data - Revit (rfa)
• 2A Technical Drawing (jpg)
• 3D Drawing (igs)
• 2D Technical Drawing (dwg)
