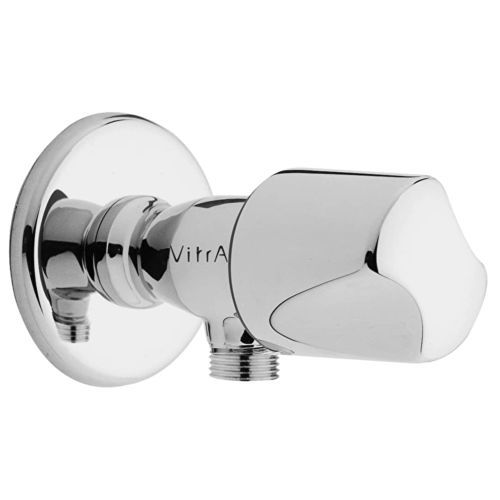

Washbasin single tap INTERVAL

wall-mountedself-closingchrome-plated brass

Product Name
Interval Tap

Overview
Wall-mounted interval tap with chrome surface finish, designed for single inlet operation. Developed by VitrA Design Team for controlled water delivery in commercial washroom applications. Supplied packaged with the specified packed dimensions to ensure safe transport.

Identifiers & Finish
Product Code: A45206EXP
Finish / Material: Chrome (body material: Brass)

Downloads available on product page (document types)

• 2D Technical Drawing (dwg)
• BIM Data - Revit (rfa)
• BIM Data - Sketchup (skp)
• Exploded Spare Part Image (jpg)
• Installation Manual (pdf)
• 2A Technical Drawing (jpg)
• Spare Part List (pdf)
• 3D Drawing (igs)
• BIM Data - IFC (ifc)
• User Manual (pdf)

Notes
VitrA reserves the right to modify products and technical details without notice. All drawings are within standard tolerances. For precise measurements during installation, use actual product measurements.

Technical specifications

• Badge Diameter (mm): 65
• Body Material: Brass
• Designer: VitrA Design Team
• Installation Type: Wall Mounted
• Material (surface/finish): Chrome
• Number of Water Inlets: Single Inlet
• Operating Pressure: Min:0.5 - Max:10 (Recommended 1-5)
• Outlet Height: 0
• Outlet Length: 18
• Outlet Rotation Angle: Fixed
• Packaged Dimensions (W×D×H): 400 x 300 x 200
• Water Efficiency Class: Red (>13)
