Glazing rooflight LINEARLIGHT

flat roofwith skylight frameglass

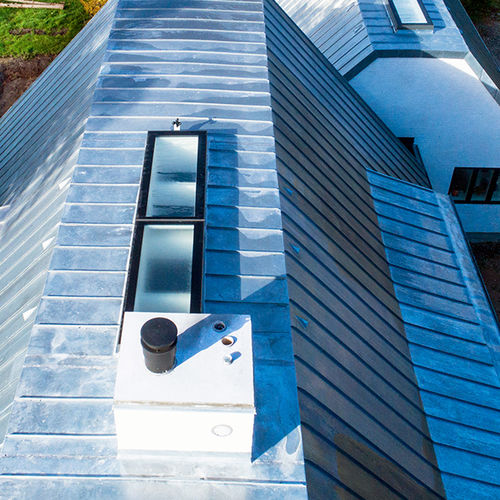

A row of connected flat glass rooflights with option to design wide, uninterrupted daylight sources. Flat and sloped roofs from 0° up to 15° Recommended minimal installation pitch of 5° Flat roofing material Opening length (slope direction) from 250 - 2000 mm Ideal for rows of short and wide rooflights Option to design very wide, uninterrupted daylight sources Ideal for corridors Prefabricated top unit, built-in upstand and connector system for fast installation Fixed and/or comfort venting solution Bespoke sizes - ideal for refurbishment projects Linearlight is a row of connected VELUX Modular Rooflights that provide a larger area of natural light without the need for additional support. The solution can consist of either fixed modules, venting modules or a combination of both, with no visual difference between fixed and venting modules in closed position. The advanced connector system and drainage gutter ensures a watertight and airtight connection between the modules. A minimised beam ensures a beautiful connection on the inside. Linearlight Fixed is available as burglary-resistant versions according to EN 1627:2011 and NEN 5096-2012+A1:2015: Class 2 (RC 2). VELUX Modular Rooflight modules are supported by a 10-year guarantee. Actuators and other electrical components that are part of the modular system come with a three-year guarantee. VELUX Commercial specialists can offer support throughout design, specification and installation. VELUX Modular Rooflights are produced off-site at our factory. Linearlight consists of a glass top unit and a built-in wooden upstand and is available as fixed or comfort venting solutions.
