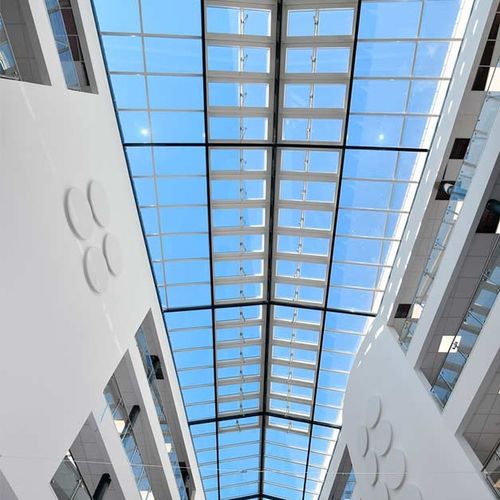

Fixed glass roof

aluminiuminsulated

Stick-glazing system with aluminium profiles to create made-to-measure daylight solutions Flat roofs, sloped roofs and facades All roofing materials Unlimited opening width in roof Minimum solution installation pitch 5° Almost unlimited design freedom Can be a self-supporting solution or fixed to a supporting structure Possibility to design very large solutions We guarantee both products and installation Our Structural Glazing system enables you to create individual, creative and tailor-made daylight and ventilation solutions with very good physical building properties. The system consists of vertical mullions and horizontal transoms that are assembled on site. Externally, the profiles have aluminium covers and pressure profiles that retain the insulating glass units in place. The profiles carry the structural load of the solution, so they can be self-supporting or fixed to a supporting structure. The mullion and transom width is 60 mm. The cross-section depth of the profile can be between 35 mm and 170 mm. The depth of the profile is determined by the span width, taking the glazed imposed loads, wind load and snow load into consideration. The system offers excellent sealing values, even for low pitch roofs slopes, and controlled and reliable drainage over two levels. We design, manufacture, supply and install the full solution - guaranteeing both products and installation. Our Structural Glazing Systems are supported by a 20-year guarantee. You can achieve any size in supported rooflight structures and up to 10m in unsupported rooflight structures (depending on the roof glazing solution selected).
