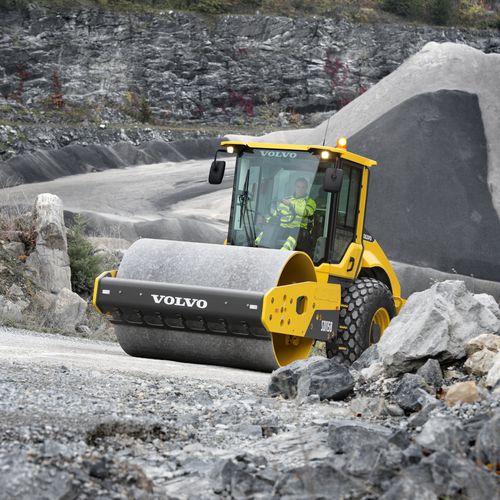

The new SD115B soil compactor from Volvo is packed with advanced technology – the drum is configured with ease while the engine controls itself to provide maximum versatility and performance. Step up to the Volvo designed cab and experience industry-leading low noise levels, ultimate comfort and a productive working environment.
Operating weight (with ROPS, fully ballasted) - 25,614 lbs
Operating weight (with ROPS, inc. Cab & inside scraper) - 25,865 lbs
Centrifugal force - 46,800/58,050 lbf
Vibration frequency - 1,850/2,025 v/min
Optional 5x frequency (High Amplitude) - 1,400/2,025 v/min
Gradeability - 65 %
Rated engine power - 147.5 hp
Amplitude - 0.076/0.051 in
Drum width - 84 in
Articulation angle - +/-35 degree
Oscillation angle - +/-12 degree
