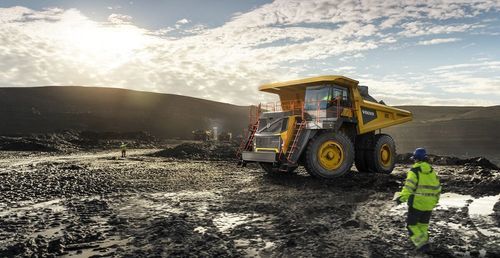

Rigid dump truck R100

rear unloadingTier 4all-terrain

Overview
The 95-tonne Volvo R100 Rigid Hauler (R100E) is built for demanding quarrying and mining applications to deliver high uptime, optimum productivity and low total cost of operation. Proven on the toughest jobsites worldwide, the R100 provides strong tractive effort and class-leading rimpull for confident hauling on steep gradients. Intelligent systems and machine design optimise fuel efficiency, uptime and operator performance.

Main product highlights

• True 95 000 kg (95 tonne) payload capacity for heavy production operations
• 60.4 m³ exhaust-heated V-shaped body (SAE 2:1 heap) designed for excellent load retention and low carry-back
• Powerful drivetrain with 783 kW gross power (1,050 hp) and strong rimpull/tractive effort
• Fast body tipping system and optimised body design for shorter cycle times
• Optional all‑round factory-fit oil-cooled multi-disc brake system for superior braking performance and extended brake component life
• Smart systems including Volvo Dynamic Shift Control, Eco Shift Mode, On-Board Weighing (OBW) and telematics-ready interfaces to support productivity and fleet management
• Robust safety: ROPS/FOPS-certified cab, Volvo Smart View visibility features, fail-safe braking and transmission overspeed protection
• Designed for long service intervals, easy service access and grouped service points to maximise uptime

Key features and benefits

• Available with all-round oil-cooled disc brakes: optional factory-fit front oil-cooled multi-disc brakes and oil-cooled hubs increase total brake area, improving heat dissipation, enabling controlled downhill speeds (up to 26 km/h on 10% gradients and 19.5 km/h on 15% gradients) and extending brake lifecycles to lower operating costs
• Fuel efficiency: Volvo Dynamic Shift Control with Eco Shift Mode reduces fuel use; auto-idle shutdown and optional gear-sensitive OBW further enhance savings and reduce engine wear
• High productivity: 60.4 m³ V-shaped body and 95-tonne payload move more tonnes per hour; body fabricated from high-impact, abrasion-resistant steel for long service life and low centre of gravity for stability
• Connectivity and monitoring: On-Board Weighing for real-time tonnage display and logging, Volvo telematics integration and CAN-bus data access for fleet monitoring and production analysis
• Uptime and serviceability: durable chassis, wishbone-type suspension, grouped service points and ground-level checks; optional CareTrack telematics and uptime service packages
• Operator environment: pressurised ROPS/FOPS cab with enhanced visibility (support via Volvo Smart View), adjustable air-suspension seat, low-noise viscous-mounted cab and ergonomic controls
• Safety systems: transmission retarder, modulating rear brake retarder, neutral coast inhibitor, emergency shutdown and designed service access with anti-slip steps and secure walkways

Applications

• Large-scale mining operations
• High-production quarrying
• Heavy haul and material transport on steep or challenging terrains

caractéristiques / spécifications techniques

• Product technical designation: R100E
• Payload capacity: 95,000 kg
• Body volume, SAE 2:1 heap: 60.4 m³
• Net weight (empty): 69,752 kg
• Gross weight: 164,752 kg
• Engine: Cummins QST30 (Tier 4 final / Stage V certified)
• Gross power: 783 kW (1,050 hp) at 2,100 rpm
• Max SAE J1349 gross torque: 4,631 Nm at 1,300 rpm
• Max speed: 50 km/h
