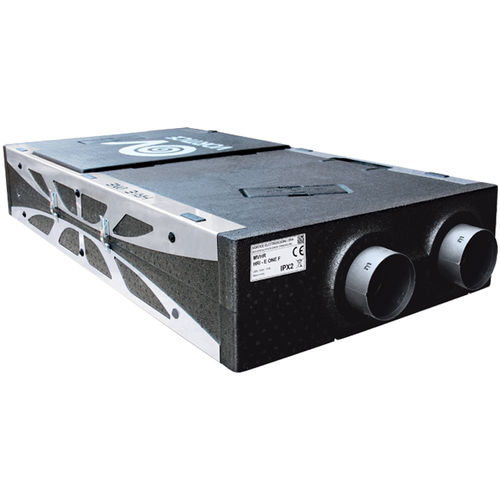

Dual-flow heat recovery unit HRI-E / VORT HR EXO
residentialcommercialfor home

dual-flow heat recovery unit
dual-flow heat recovery unit
dual-flow heat recovery unit
dual-flow heat recovery unit
dual-flow heat recovery unit
dual-flow heat recovery unit
dual-flow heat recovery unit
dual-flow heat recovery unit
dual-flow heat recovery unit
Add to favorites
Compare this product


Characteristics

Type
dual-flow
Sector
residential, commercial
Applications
for home
Air flow

Min.: 85 m³/h
(3,001.7 ft³/h)

Max.: 365 m³/h
(12,889.9 ft³/h)

Description

Description • Fire-resistant expanded polypropylene enclosure with zinc-coated side plates. • Duct connection ports of nominal diameter 125 mm. • 2 x EC brushless motor with shaft turning in ball bearings; 3 speeds, which can be set independently at the moment of installation and monitored from a remote control panel connected by wire, with LCD display. • Air flow settable between 85 m3/h and 185 m3/h. • Ultra high-efficiency counter-flow type heat exchanger fashioned from moulded plastic (PS). • 100% by-pass, automatically operated with filtration. • Automatically activated system designed to prevent icing of the heat exchanger. • Mod-Bus module with RS485 connection port in slave mode • Compatible with operation piloted by Vortice ambient sensors: temperature (C TEMP), relative humidity (C HCS), presence (C PIR) and smoke alarm (C SMOKE). With operation interlocked to sensors, the local control functions are inhibited: the appliance continues to operate at minimum speed as long as the reference parameters monitored by the connected field sensors remain below the relative threshold values; when these values are exceeded, the appliance will switch to the maximum speed setting, which is then maintained until such time as normal ambient conditions are restored. • 2 x F5 filter (alternatively, option of F7 filter on outlet duct).
