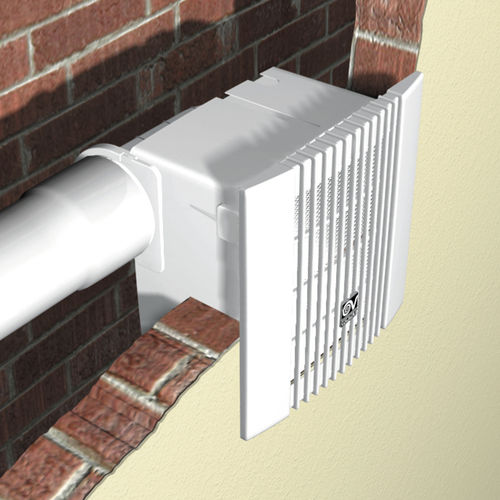

Extractor fan VORT PRESS Icentrifugalductwall-mount
Add to favorites
Compare this product
Characteristics
- Technology
- extractor, centrifugal
- Installation
- duct, wall-mount, recessed
- Sector
- commercial, residential
- Material
- metal, plastic
- Air flow
Max.: 140 m³/h
(4,944.1 ft³/h)Min.: 50 m³/h
(1,765.7 ft³/h)
Description
Description
• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 100 mm
• 2 speed motor with thermal overload protection and shaft turning in ball bearings.
• Minimum air flow, rear outlet: 55 m3/h
Maximum air flow, rear outlet: 118 m3/h
• Minimum air flow, side outlet: 67 m3/h
Maximum air flow, side outlet: 140 m3/h
• Double motor-fan enclosure, antivibration mounts and non-return damper combining to ensure extremely quiet operation.
• Supplied with front grille mounting springs, suitable for any kind of false ceiling (65 mm max).
• Removable and washable metal mesh filter.
• Outlet port equipped with non-return damper.
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controller.
