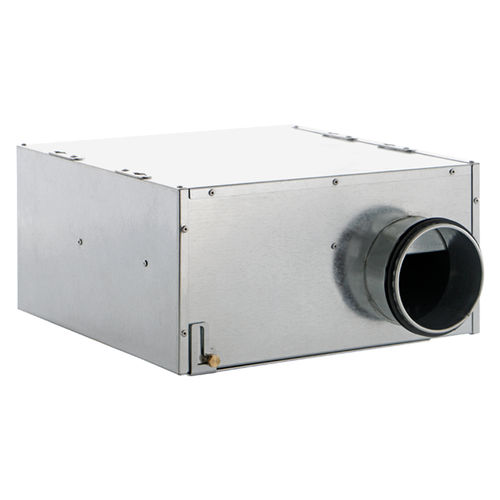

Centrifugal fan CA IN-LINE
ductwall-mountedceiling

centrifugal fan
centrifugal fan
centrifugal fan
centrifugal fan
centrifugal fan
Add to favorites
Compare this product


Characteristics

Type
centrifugal
Installation
duct, wall-mounted, ceiling
Sector
commercial
Material
galvanized steel, plastic
Air flow

Min.: 0 m³/h
(0 ft³/h)

Max.: 830 m³/h
(29,311.2 ft³/h)

Description

Description • Casing and motor-support made of galvanized sheet steel; lined internally with PE sound-proof panel (thickness 10 mm). • Circular spigots for connection to standard tubes, equipped with double lip rubber seal for perfect air tightness. • Nominal diameter: 100 mm. • External rotor AC motorfan, with shaft turning in ball bearings, coupled to a backward curved centrifugal impeller. • Galvanized steel sheet brackets, directly coupled to casing. • Electric connection box accomodating capacitors, molded with shock-proof plastic resin resistant against aggressive agents, integrating cable cages and cable glands to ensure high protection (IP55) against dust and water. • 3 alternative installation: wall, ceiling and false-ceiling. • Easy maintenance: motor is directly fixed to the cover, in turn hinged to the casing, allowing easy external rotation and motorfan direct access. • Protection against dust and water: IP44. • Electric insulation class: I (grounding is required).
