wall-mounted range hood / with built-in lighting

Add to MyArchiExpo favorites
Compare this product Don’t compare this product

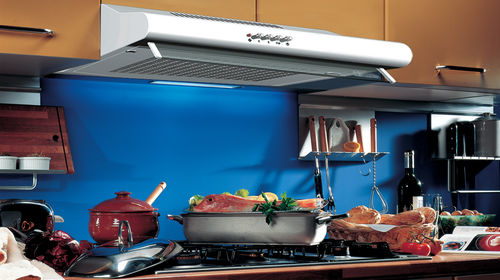

wall-mounted range hood wall-mounted range hood - VORTEX


  • Type:


  • Options:

    with built-in lighting


• Pressed steel frame with scratch-resistant powder-coated white finish
• Extractor unit, motor mounting and fan impeller made of self-extinguishing plastic resin.
• Duct connection port of nominal diameter 120 mm.
• Overall width 60 cm.
• 3 speed AC motor with thermal overload protection, controlled from buttons on the fascia.
• Air flow between 120 m3/h and 250 m3/h.
• Option of operation in air-recycle mode with activated carbon filter.
• Equipped with 40W incandescent lamp so as to light up foods without altering their colour, and diffusers providing best possible illumination of the cook top.
• Movable glass visor.
• Exhaust flange for connection to duct, diameter 120 mm, with non-return damper preventing backdraught.
• Covers for outlet ports.
• 1 x exhaust port adapter for connection to 100 mm diameter ducts
• Activated carbon filter for conversion from extraction to recycle mode
• Prewired power cable (without plug).
