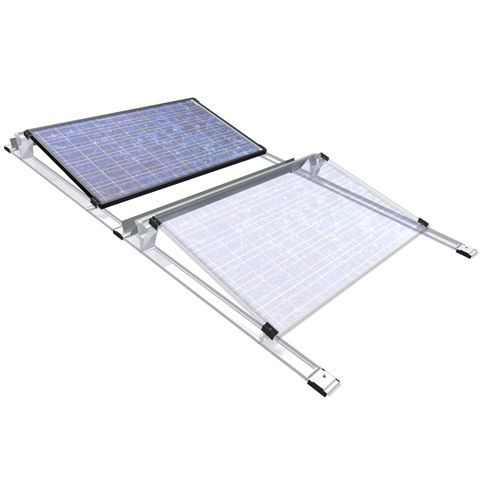

Flat roof mounting system TRIC F DUO

on-roofsolarfor PV applications

NEW! TRIC F DUO - FLAT ROOF INSTALLATION IN RECORD TIME TRIC F duo - a highly flexible and compact mounting system for all conventional flat roofs. The sophisticated system convinces with low material use, easy assembly and short rail lengths facilitating handling. This reduces costs and increases profitability. Low system costs The material-optimized, intelligent design cuts costs in three ways: the use of materials, during transport and during installation. Very fast installation The simple system reduces the installation time considerably. Highly flexible One system for southern (10°/18°) and east-wester (10°) mounting. The flexible, pluggable and segmental design is self-aligning, adapts to all substrates and surfaces and also forgives uneven roofing. Lightweight design Thanks to the low ballast the additional roof load is reduced. Building protection mats are only required to cover the rail ends. Application Flat roofs with little excess load tolerance or roof penetration impossible/undesirable Panel orientation Pitch south 10°. 17° or 18° ; pitch east/west 10°; vertical; for practically all common framed panels Ballast Normal roof zone min. 5 kg/panel; corner zones min. 20 kg/panel Structural roof load Min. 8 kg/m² Material Aluminium and stainless steel
