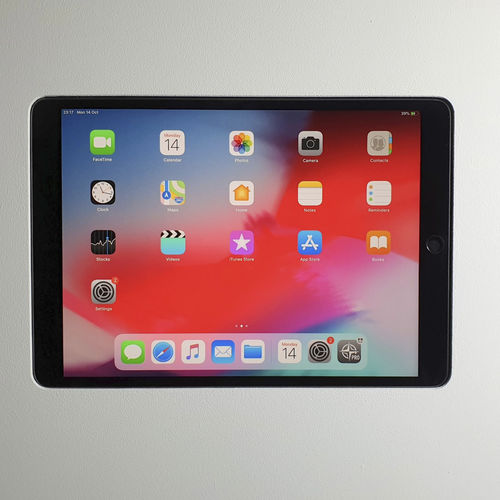

New Construction
Flush with the wall.
For iPad7, 8 & 9th Gen.
For 1/2" drywall. To install in 5/8" use a shim pack 10-01-067
Wall mount may be mounted in any orientation.
No speaker/mic grills.
For concrete installation use concrete adapter 100-1-619
Dimensions: (W/H/D): 327.7mm (12.9")/ 243.8mm (9.6")/ 42mm (1.65”)
Power Supply: Wall mount includes POE to USB converter. The installer should connect the wall mount to an IEEE 802.3at POE+ power source via CAT6 cable and RJ45 connector.
