New Construction
Flush with the wall.
For 1/2" drywall. To install in 5/8" use a shim pack 10-01-067
Wall mount may be mounted in any orientation.

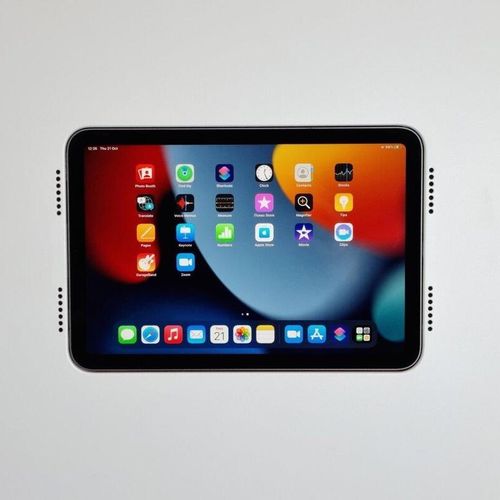

For iPad mini 6
With speaker/mic grills.
For concrete installation use concrete adapter 100-1-403
Dimensions: (W/H/D): 304.8mm (12.0")/ 203.2mm (8.0")/ 38.9mm
(1.53”)
Power Supply: Wall mount includes POE to USB converter. The installer should connect the wall mount to an IEEE 802.3at POE+ power source via CAT6 cable and RJ45 connector.
