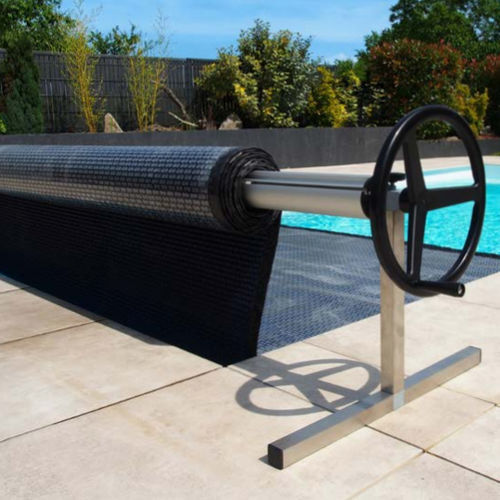

Automatic swimming pool cover ECLIPSE

summerremovabledurable

Choose your roller: depending on the diameter of the axis depending on the size of your basin (weight) and the desired positioning of the reel (fixed or mobile). Technical features 35 x 35 mm square stainless steel base: BASIC: asymmetric crimped lowered base EVOLE: crimped base PRESTIGE: welded base Telescopic axes in anodized alu- minum: BASIC: 0 85 mm EVOLE: 0 95 mm PRESTIGE: 0 110 mm Special groove for fixing the cabiclics bungee cords supplied with the reel Slowing and locking brake (thumb- wheel) Polystone bearings Stainless steel flanges with 0 20 mm shaft Handwheel 0 350 mm in polypropyl- ene with rotating handle FIXED BASIC: 2 fixed feet without wheels BASIC: 1 fixed foot and 1 foot with 2 wheels BASIC MOBILE: 4 multidirectional wheels including 2 with brakes EVOLE: 1 fixed foot and 1 foot with 2 wheels MOBILE EVOLE: 4 multidirectional wheels including 2 with brakes WALL EVOLE: 2 stainless steel plates with 4 holes for wall mounting ABOVE-GROUND EVOLE: Adjustable in height from 90 to 130 cm. 1 fixed foot and 1 foot equipped with 2 inflatable wheels PRESTIGE: 1 fixed foot and 1 foot with 2 wheels * ECLIPSE Double axis: 2 welded stainless steel supports each fitted with 3 multidirectional wheels. 2 of which have brakes. 2 stainless steel axes of 0 140 mm. Winding cranks and brake wheels. Option: Motorization (Prices on request)
