Electric radiant panel WG AMBIENTE®

wallresidentialhome

Description

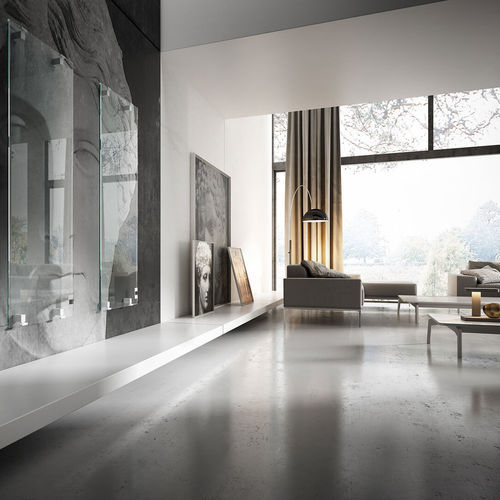

WG AMBIENTE® is a glass electric radiator using long-wave infrared heating. It is composed of two laminated glass panes, one of which has a surface coating that heats when electrically energized. The surface coating converts electrical energy into heat emitted as long-wave infrared radiation. WG AMBIENTE® is produced in five sizes and multiple finishes (solid color, digital print, transparent and mirror) and can be used as a primary heating system or as supplementary heating. The solution achieves near-100% energy conversion, with virtually all electrical energy released as heat inside the room.

Range
Size/power: 450x800 mm / 400 W
650x800 mm / 600 W
850x800 mm / 800 W
1050x800 mm / 1000 W
Thickness: 8 mm
Distance from wall: 40 mm
Shape: rectangular
Standard colors: white and black
Optional accessories: towel rail kit
Control systems: compatible with electronic management accessories (timer, thermostat, chronothermostat, temperature regulation, home automation, wireless systems, etc.)

Applications
WG AMBIENTE® can be mounted horizontally or vertically depending on space and requirements. It can be installed in bathrooms as a towel warmer by fitting one or more towel rail kits.

Features

• Type: electric; infrared electric
• Power: 0...500 W; 500 W; 501...750 W; 751...1000 W; 1001...1500 W
• Style: contemporary
• Finish: tempered glass coating
• Color: transparent
• Installation: wall-mounted
• Orientation: vertical
• Shape: rectangular
• Other features: radiant panel

Technical specifications

• Model / Series: WG AMBIENTE®
• Type: glass electric radiator, long-wave infrared heating glass panels
• Efficiency: near 100% (electrical energy converted to heat)
• Available sizes and powers: 450x800 mm - 400 W; 650x800 mm - 600 W; 850x800 mm - 800 W; 1050x800 mm - 1000 W
• Power ranges indicated: 0...500 W; 500 W; 501...750 W; 751...1000 W; 1001...1500 W
• Thickness: 8 mm
• Distance from wall: 40 mm
• Shapes: rectangular (mountable vertically or horizontally)
• Colors / Finishes: solid color, digital print, transparent, mirror; standard colors white and black
• Installation: wall-mounted, mountable horizontally or vertically
• Available accessories: towel rail kit (optional)
• Compatible control systems: timer, thermostat, chronothermostat, temperature regulation, home automation, wireless systems, etc.
• Typical applications: primary or supplementary heating; residential use including bathroom as towel warmer
