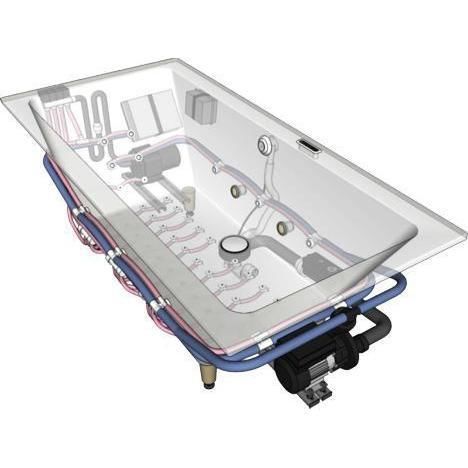

Built-in bathtub AERO-HYDROBAIN

professionalcompositecontemporary

Overview
The AERO-HYDROBAIN balneotherapy systems provide decontracting or toning massage sessions by combining the AEROBAIN (airjets) and HYDROBAIN (hydrojets) systems. Programs can run together or separately and include TONIC, RELAX and DRAINANT modes.

Operating principle
The system pairs the relaxing action of AEROBAIN (bubble bath / airjets) with the toning effect of HYDROBAIN (hydrojets). Both functions may be used simultaneously or independently depending on the desired effect.

Control panel

• Ultra-flat keypad with backlit keys.
• Can be integrated into the horizontal rim or installed on the vertical panel on request.
• Frame available in CERALITE matching the bathtub, or in chrome or gold metal finishes.
• Intuitive controls to adjust massage intensity and select programs TONIC, RELAX or DRAINANT.

Pump and air blower

• Pump: 1100W or 1200W depending on bathtub model.
• Air blower: 800W or 1000W depending on bathtub model.
• 300W dedicated to air pre-heating.
• Ozone generator integrated into the blower.

Safety

• Detector prevents start-up if water level is too low.
• Safety stops pump operation in case of suction blockage.
• Double safety loop preventing any water return to the air blower.
• Air injectors fitted with non-return valves.

Hydrojets
Hydrojets are distributed according to each bathtub geometry to optimize massage effectiveness. Jet finishes can match the bathtub color or be supplied in chrome or gold.

Airjets
Airjets are very discreet (no trim or rosette) to preserve a perfectly smooth tub bottom. They are distributed on the floor and rise at lumbar level.

Comfort and hygiene

• Air blower with 300W air pre-heating and integrated ozone generator to improve water cleanliness.
• Automatic pipe drying at end of cycle for improved hygiene.
• Manual cleaning and disinfection procedure possible using a dedicated WATERGAME balneotherapy cleaner.

Chromotherapy spots
Two chromotherapy spots included as standard. Lighting cycles blue → green → yellow → red, with the option to stop on a chosen color.

Option: Water heater
Optional water heater available, recommended for large balneotherapy bathtubs (two-seater bathtubs).

Documents
Product data sheet (AERO/HYDROBAIN system) available in PDF.

Technical specifications

• Model: AERO-HYDROBAIN
• Programs: TONIC, RELAX, DRAINANT
• Pump: 1100W or 1200W (depending on model)
• Air blower: 800W or 1000W (depending on model)
• Air pre-heating: 300W
• Ozone generator integrated in the blower
• Number of chromotherapy spots: 2 (adjustable cyclic colors)
• Hydrojets: distributed per bathtub geometry, finish options: matching color, chrome, gold
• Airjets: discreet, smooth tub bottom, positioned for lumbar action
• Safety: water level detection, suction blockage stop, double anti-return loop
• Hygiene features: automatic pipe drying, dedicated manual cleaning procedure
• Option: water heater available (recommended for 2-seater bathtubs)
