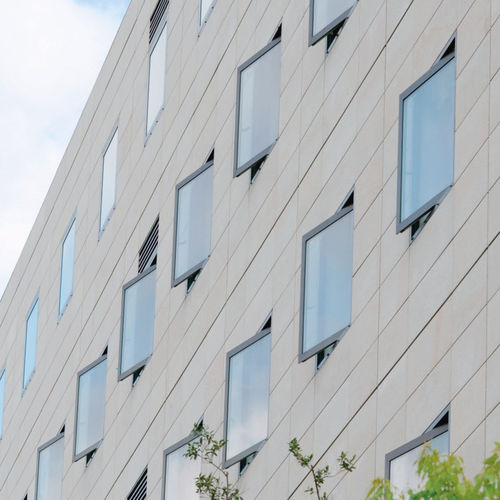

Pivoting window WICLINE 65 EVO/75 EVO
aluminumtriple-glazedthermal break

pivoting window
pivoting window
pivoting window
pivoting window
pivoting window
pivoting window
pivoting window
Add to favorites
Compare this product


Characteristics

Opening system
pivoting
Material
aluminum
Glazing
triple-glazed
Performance
thermal break
Technical characteristics
wind-proof, waterproof
Other characteristics
for commercial buildings
Height

140 cm, 200 cm (55.12 in)

Width

200 cm, 240 cm (78.74 in)

Description

WICLINE 65 EVO / 75 EVO A classic opening type as a state-of-the-art product with WICONA technology: The horizontal and the vertical pivot windows based on the aluminium window system WICLINE evo offer improved thermal insulation, achieve high classifications in CE-testing, and with their option of visible or concealed fittings they are a real visual highlight in any façade. Technical performance: Profile technology: High insulation multi-chamber system in symmetric design, quality assured thermal insulator connection Patented corner and butt joint connection technology for high rigidity of frames and sashes Infill thickness up to 69 mm ƒ Optionally with frame for punched hole application Thermal insulation: Uf values: until 1.5 W/(m²K) Uw values: until 1.0 W/(m²K) with triple glazing Sealing concept: Special multi-chamber centre gasket with fins for superior tightness and improved thermal insulation Hardware: Horizontal or vertical pivot fittings, optionally with - visible bearings or - concealed bearings Sash weight: - Horizontal: up to 150 kg - Vertical: up to 120 kg Sash sizes (w x h): - Horizontal: up to 2400 mm x 1400 mm - Vertical: up to 2000 mm x 2000 mm
