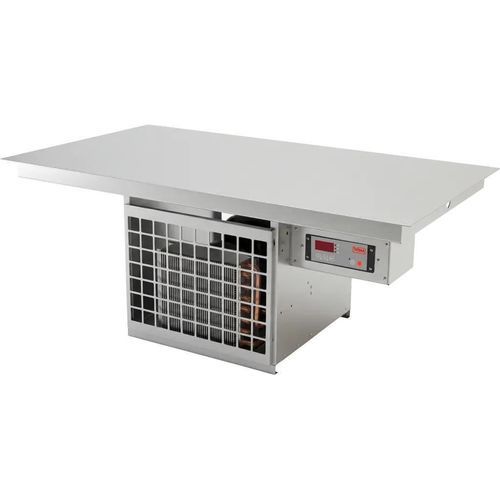

Restaurant cold plate KKP-FLAT

Short description
Contact cooling plate for short-term cooling of prepared food in the serving area, suitable for GN and EN formats.

Features

• Application: Short-term cooling of food in the serving area
• Norm: GN6, EN6
• Standard width range shown: 1 - 1200
• Cooling unit options: external or internal

Variants (table)
Article No. | Label | Norm | Standard width | Width | Cooling Unit
3550 | Contact Cooling Plate KKP Flat 1/1 | GN | 1/1 | 352 mm | External
3551 | Contact Cooling Plate KKP Flat 2/1 | GN | 2/1 | 672 mm | External
3552 | Contact Cooling Plate KKP Flat 3/1 | GN | 3/1 | 997 mm | External
3553 | Contact Cooling Plate KKP Flat 4/1 | GN | 4/1 | 1322 mm | External
3555 | Contact Cooling Plate KKP Flat 400 | EN | 400 | 462 mm | External
3556 | Contact Cooling Plate KKP Flat 800 | EN | 800 | 862 mm | External
3557 | Contact Cooling Plate KKP Flat 1200 | EN | 1200 | 1262 mm | External
20862 | Contact Cooling Plate KKP Flat 1/1 | GN | 1/1 | 352 mm | Internal
20863 | Contact Cooling Plate KKP Flat 2/1 | GN | 2/1 | 672 mm | Internal
20864 | Contact Cooling Plate KKP Flat 3/1 | GN | 3/1 | 997 mm | Internal
20865 | Contact Cooling Plate KKP Flat 4/1 | GN | 4/1 | 1322 mm | Internal
20866 | Contact Cooling Plate KKP Flat 400 | EN | 400 | 462 mm | Internal
20867 | Contact Cooling Plate KKP Flat 800 | EN | 800 | 862 mm | Internal
20868 | Contact Cooling Plate KKP Flat 1200 | EN | 1200 | 1262 mm | Internal
3310 | TMP 350 (accessory/variant) | - | - | 180 mm | -
33193 | Protective machine cover Type 170-230 (accessory) | - | - | - | -
33194 | Protective machine cover Type 370-825 (accessory) | - | - | - | -
33570 | TMP 350-CLOUD controller instead of TMP 350 (accessory) | - | - | - | -
33574 | TMP 350 - CLOUD (accessory/variant) | - | - | 180 mm | -

Technical specifications

• Model / Denomination: KKP-flat
• Intended use: Short-term cooling of food in the serving area
• Available article numbers / variants: 3550, 3551, 3552, 3553, 3555, 3556, 3557, 20862, 20863, 20864, 20865, 20866, 20867, 20868, 3310, 33193, 33194, 33570, 33574
• Available sizes / widths (examples): 352 mm, 462 mm, 672 mm, 862 mm, 997 mm, 1262 mm, 1322 mm
• Standard width options indicated: 1/1, 2/1, 3/1, 4/1, 400, 800, 1200
• Cooling unit options: external or internal
