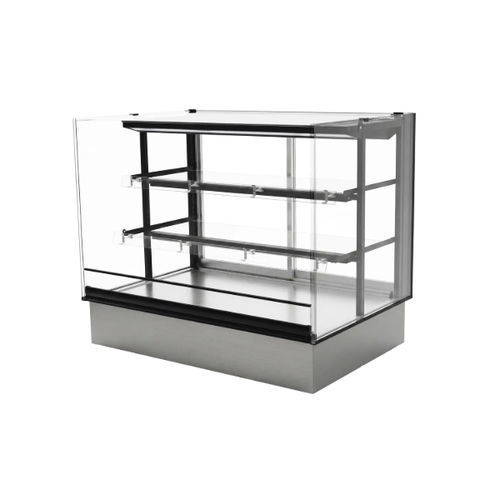

Counter refrigerated display case COMBI-LINE GN COLD KO

for shopmetalwith sliding door

Product overview
Customer-side open forced-air refrigerated display case designed for grab-and-go presentation of packaged goods, offering configurable shelving and multiple door and cooling-unit options.

Key features

• Energy-saving: Optimized air curtain technology forms an invisible barrier to reduce heat ingress and lower energy consumption.
• Smart connected: WIHA CLOUD CONTROL enables remote control and HACCP-capable monitoring via app or browser.
• Hygiene & serviceability: Swiveling lift evaporator and patented MOVE-AWAY / MOVE-DOWN mechanisms simplify cleaning and maintenance.
• Performance: Maintains temperature < 7 °C (at 25 °C ambient / 60% RH, climate class 3).

Design & options

• Shape: Norm (GN6)
• Display shelves: 2–3 configurable shelves
• Standard width series: 1.5, 2, 3, 4
• Glass height options: 520 mm, 710 mm
• Operator-side options: Revolving door or Sliding door
• Cooling unit: External or Internal
• Optional features: CRI90 LED, SOFT LIFT, SOFT CLOSE, SPLIT CONTROL, LONG LIFE, FRISCHE SYSTEM

Variants (examples)
33697 | Combi-Line GN COLD KO-DT 520/1,5 | 520 mm | Revolving door | 1.5 | 588 mm | External | -
33698 | Combi-Line GN COLD KO-DT 520/2 | 520 mm | Revolving door | 2 | 750 mm | External | -
33699 | Combi-Line GN COLD KO-ST 520/2 | 520 mm | Sliding door | 2 | 750 mm | External | -
33700 | Combi-Line GN COLD KO-ST 520/3 | 520 mm | Sliding door | 3 | 1075 mm | External | -
33701 | Combi-Line GN COLD KO-ST 520/4 | 520 mm | Sliding door | 4 | 1400 mm | External | -

Technical specifications

• Product type: Customer-side open forced-air refrigerated display case (grab-and-go)
• Temperature performance: < 7 °C (at 25 °C ambient / 60% RH, climate class 3)
• Air curtain technology for reduced energy consumption
• Connectivity: WIHA CLOUD CONTROL for monitoring, control and HACCP-compliant data logging
• Hygiene & service: Swiveling lift evaporator; MOVE-AWAY and MOVE-DOWN patented cleaning technologies
• Display shelves: Configurable 2 to 3 shelves
• Glass height options: 520 mm, 710 mm
• Standard width variants: 1.5, 2, 3, 4
• Example nominal widths: 588 mm, 750 mm, 1075 mm, 1400 mm
• Operator-side options: Revolving door or Sliding door
• Cooling unit options: External or Internal
• Lighting / equipment: CRI90 LED and optional feature packages
