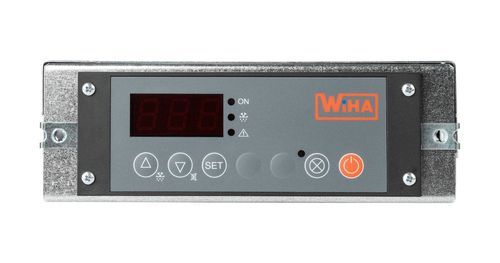

Cooling controller TMP 350

Product overview
Built-in control unit designed for cooling plates and contact-cooled cooling troughs. Not suitable for circulating or forced-air cooling systems.

Features

• Low-cost control unit for cooling plates and contact-cooled troughs.
• Unsuitable for forced-air (circulating) cooling systems.
• Operating temperature range: −30°C to +20°C.
• Load switching output: 230 V, max. 6 A (technical data also references up to 6.3 A).
• Additional button provided for auxiliary functions (e.g., counter lighting).
• Supply line, refrigeration unit/solenoid valve and light are connected inside the housing via terminal/screw connections.
• Panel dimensions: W 200 x H 82 mm. Housing dimensions: W 180 x H 61 x D 175 mm.
• TMP 350-CLOUD version available with gateway for WIHA CLOUD CONTROL.
• Outputs: Refrigeration unit: 230 V, max. 400 VA (or up to 3400 W with purely resistive load). Switching output: 230 V, max. 6.3 A for light or frame heating (with electronic ballast (EVG) max. 30 VA).

Variants
Article No. 3310 - TMP 350
Article No. 33574 - TMP 350 - CLOUD

Technical specifications

• Application: control for cooling plates and contact-cooled cooling troughs.
• Not suitable for: circulating / forced-air cooling systems.
• Temperature range: −30°C to +20°C.
• Refrigeration output: 230 V, max. 400 VA (or up to 3400 W with purely resistive load).
• Switching output (light / frame heating): 230 V, max. 6 A (datasheet also lists up to 6.3 A); with electronic ballast (EVG) max. 30 VA.
• Additional function button: provided (e.g., for counter lighting).
• Electrical connections: internal terminal / screw connections for supply line, refrigeration unit/solenoid valve and light.
• Panel dimensions: W 200 x H 82 mm.
• Housing dimensions: W 180 x H 61 x D 175 mm.
• Available versions: TMP 350 and TMP 350 - CLOUD (with gateway for WIHA CLOUD CONTROL).
