Canopy for commercial buildings

entrancemetalfabric

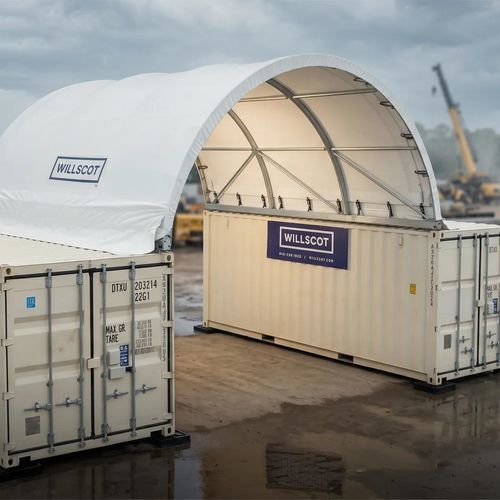

Description Work slows when your space is too far from the job or exposed to the elements. Quick-Connect Canopies create a modular, quickly deployable covered area for operations that require flexible, rapid shelter. Start with a 20' x 20' roof and expand covered area in 20' increments for storage, preparation, workflows and active operations. Modular design engineered for easy integration with WillScot units.

Key points

• Rapid deployment and non-invasive installation, ISO-mounted without damage to host structures.
• Fully engineered design to support permit application documentation.
• Designed to protect personnel, equipment, materials and work areas in all weather conditions.

Visible specifications

• Typical starter size: 20'W x 20'L x 17'H
• Expandable by 20' increments (e.g. 20', 40', 60' and wider configurations)
• Arched/curved design with minimum center clearance of 17'
• Industrial design: heavy-duty fabric and metal frame engineered for site wind and snow loads
• Quick installation: a 20'×20' canopy can be installed in one day depending on site conditions

Fleet compatibility

• FLEX® units
• 20' containers
• 20' ground-level offices
• 20' refrigerated containers

Common uses

• Weather-protected preparation and storage areas
• Covered access points between units
• Outdoor work and fabrication zones
• Covered break / lunch areas
• Vehicle parking and service bays
• Seasonal pickup / retail kiosks

Additional information

• Can accommodate a lunch area for approximately 36 people (6 tables) depending on layout
• Scalable design to enlarge covered area with simple canopy-to-canopy connections
• Engineering packages available for permit submission

Features / technical specifications

• Displayed standard dimension: 20'W x 20'L x 17'H
• Proposed width: 20'
• Lengths: scalable by 20' increments (20', 40', 60', etc.)
• Center clearance: minimum 17' (curved design)
• Materials: industrial fabric and metal frame (engineered for site climatic loads)
• Mounting: ISO-mounted, non-invasive, rapid installation (e.g. 20'×20' in 1 day under standard conditions)
• Integration: designed to interface with WillScot containers and units (FLEX®, offices, refrigerated containers)
