Optimal heat generation at low temperatures
High comfort
Stepless control
Low electricity consumption
Cooling option using heat pump

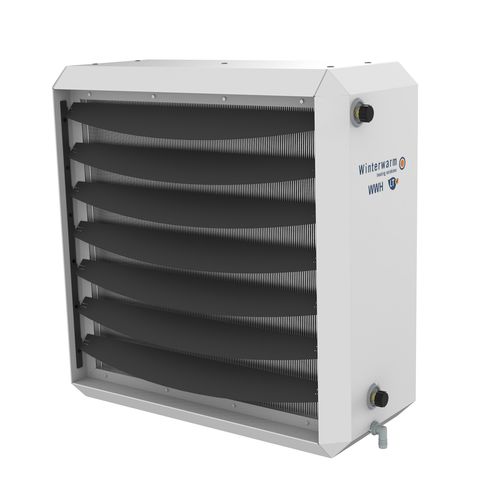

The WWH 110 LT is a compact water heater with a heating capacity of 8.3 kW at a water temperature of 45°/35°. In cooling mode the capacity is 6.6 kW at a water temperature of 7°/12°C.
The EC fan technology saves approx. 25% of the electric consumption and is low noise. A prefect sustainable solution in many buildings.
EC fan as standard
low noise level
control with stepless 0-10 V. speed controller or on/off
suitable for all water temperatures
heat output 8.3 to 23.8 kW depending on flow/return water temperature
cooling capacity between 6.6 kW to 3.4 kW depending on flow/return water temperature
4-way or 6-way down flow plenum for built-in prefabricated ceilings (no cooling possible)
Heat emission
0kW - 23.8kW
Air volume
0m³/h - 1850m³/h
Max. throw horizontal
14m
Max. throw vertical
5m
Connection voltage
230V - 230V
Number of phases
1
Nominal current
1.1A
Max. electric power input
118W
Adjustable fins on exhaust side
Yes
Heat exchanger material
Aluminium/copper
Fan type
Axial
EC ventilator as standard
Yes
Sound pressure level at height of 5 metres
0dB(A) - 54dB(A)
Height
505mm
Width
505mm
Depth
380mm
Nominal inner diameter
3/4 inch (20)
Water-side resistance at dT 20°C
4kPa
Max. operating pressure
500kPa
Water content
2l
Weight including filling
22kg
Heat emission 50/40
10.38kW
Heat emission 45/35
8.3kW
Cooling capacity 7/12
6.6kW
