All electric
Various heating outputs
Effective heating of the room
Modulating fan
Easy to install

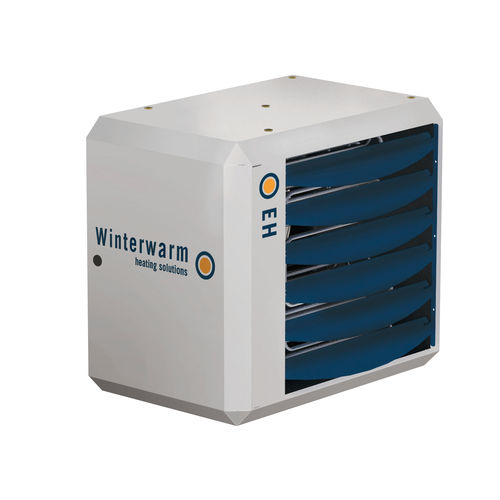

The EH 15 is an electrical heater with a capacity of 15 kW. It can be used perfectly to heat a small or medium size commercial building. The unit can be mounted on the wall by means of wall brackets or by using tie rods when mounting it a vertically to a ceiling. Also there is option to use a design bracket which makes it possible to adjust the unit in the desired position.
The fan is modulating which ensures a maximum of comfort. We recommend to control the EH by a Multitherm thermostat.
compact and light unit
low maintenance
suspension on brackets or threaded bar
tiltable up to 45°
vertical louvres available
various control options
no peak load
plug-and-play
Power
15000W
Connection voltage
3 x 230 V
Fan type
Axial
Motor power
230W
Air volume
0m³/h - 3100m³/h
Width
570mm
Height
490mm
Depth
515mm
