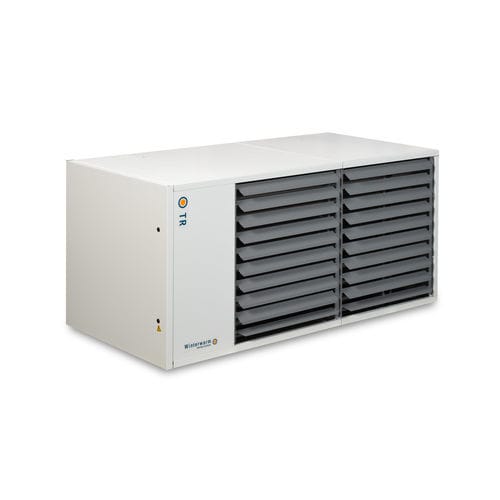

Gas air heater TR 100

ceiling-mountedwall-mounted

Improved efficiency Quick warm-up Reliable design High outputs 10 years warranty on heat exchanger Suitable for larger commercial and industrial areas requiring high heating capacities. tubular heatexchanger with atmospheric burner modulating burner control constant air output available for natural gas and propane gas no condensate drain necessary provided with 4x M10 suspension points installation on brackets or suspension by threaded bar easy to maintain suitable for larger factories or warehouses for application outside the EU (non-ErP 2021 compliant) Nominal power 99.1kW Nominal load lower value 108kW Efficiency 92.4% Air volume 0m³/h - 10400m³/h Max. throw horizontal 30m Max. throw vertical 6m Supply voltage 230V Nominal current 3.3A Max. electric power input 750W Max. sound level (at a distance of 4 metres) 56dB(A) Material heat exchanger Other Closed version Yes Burner controller high/low No Burner controller, modulating Yes Control signal on/off Yes Control signal 0-10 V No Fan type Axial Degree of protection (IP) IP00B Height 800mm Width 1735mm Depth 965mm Weight 200kg Min. mounting height (horizontal air distribution) 1.7m Outer pipe diameter combustion air 130mm Seasonal space heating energy efficiency (Ns) 72.4% Connection, fuel External thread Nominal diameter fuel 3/4 inch (20) Gas consumption low-calorific natural gas (G25) 12.5m³/h Gas consumption propane (G31) 8.4kg/h
