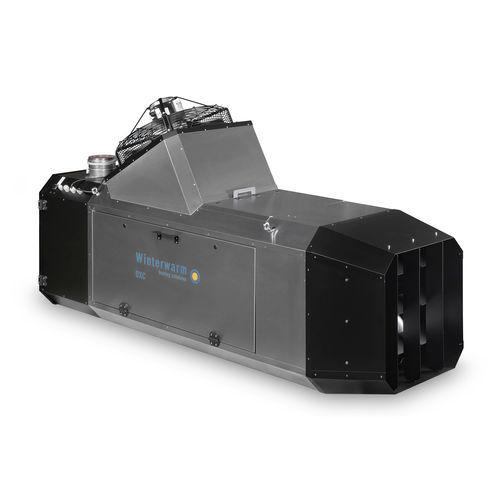

Gas air heater DXC 60

hangingmobile

Sealed combustion system No CO2 introduced into the poultry house Up to 25% energy savings Reliable design Reduced fire risk The DXC 60 is the smallest capacity of the range to heat a poultry house. With 4 x DXC 60, a poultry house of approximately 2,400 m2 can be efficiently heated. It has a closed combustion chamber which ensures a safe operation. For a good circulation of the air and low temperature differences in the farm, we recommend also using DXF fans. stainless steel casing robust tubular heatexchanger clear and simple readable display for service intake of outside air by flexible SS-tube on/of control as standard modulating control possible 0-10 V. analogue input easy to clean installation with mobile stand or on chains natural gas or propane CE approved Nominal power 59.9kW Nominal load lower value 65.5kW Efficiency 91.5% Air volume 0m³/h - 6000m³/h Max. throw horizontal 40m Supply voltage 230V Nominal current 3.5A Max. electric power input 800W Max. sound level (at a distance of 4 metres) 70dB(A) Material heat exchanger Stainless steel Closed version Yes Burner controller high/low No Burner controller, modulating Yes Control signal on/off Yes Control signal 0-10 V No Fan type Axial Degree of protection (IP) IPX4B Height 1080mm Width 650mm Depth 2100mm Weight 140kg Outer pipe diameter combustion air 130mm Connection, fuel External thread Nominal diameter fuel 3/4 inch (20) Gas consumption low-calorific natural gas (G25) 7.8m³/h Gas consumption propane (G31) 5.2kg/h
