Sealed combustion system
No CO2 introduced into the space
Installed outside the building
Up to 25% energy savings
Reliable design

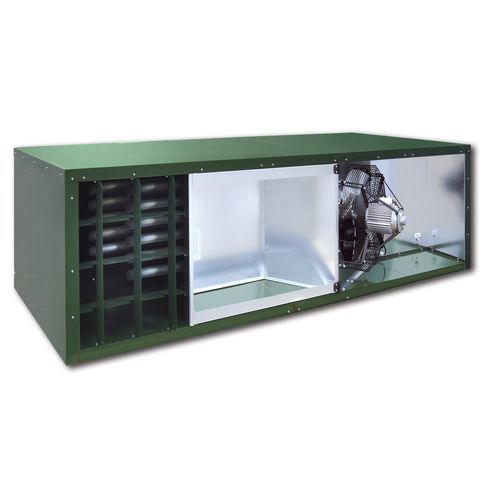

The DXE 80 is available in natural gas or propane gas. The DXE has a closed combustion chamber. CO2 and water vapour are discharged outside.
The DXE is designed for installation outside the building. The advantage for the farmer is that everything is outside , except the door for cleaning.
Also, if it is not allowed to install a gas supply line within the farm the DXE is an excellent heating solution.
An extra discharge cone is available to guide the flow of warm air along the side of the farm as well as DXF fans.
well-proven technology
controls & burner accessible by door
insulated splash proof casing
easy access due to outside location
reduction of bio hazard
on/off control as standard
modulating control possible
0-10 V. analogue input natural gas or propane
supplied with adjustable legs and wall flanges
optional: discharge cone (optional)
Nominal power
75.9kW
Nominal load lower value
83kW
Efficiency
91.5%
Air volume
0m³/h - 8000m³/h
Max. throw horizontal
45m
Max. throw vertical
0m
Supply voltage
230V
Nominal current
3.9A
Max. electric power input
900W
Max. sound level (at a distance of 4 metres)
70dB(A)
Material heat exchanger
Stainless steel
Closed version
Yes
Burner controller high/low
No
Burner controller, modulating
Yes
Control signal on/off
Yes
Control signal 0-10 V
No
Fan type
Axial
Degree of protection (IP)
IPX4D
Height
760mm
Width
1030mm
Depth
2270mm
Weight
150kg
Outer pipe diameter combustion air
130mm
Connection, fuel
External thread
Nominal diameter fuel
3/4 inch (20)
