High comfort
Reduced electricity consumption
0-10V control
Low sound level
Various discharge possibilities

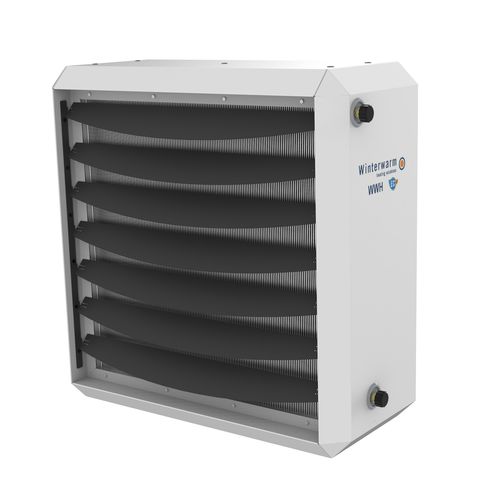

The WWH 365 EC is a water heater with a capacity of 54.4 kW at a water temperature of 90°/70°. The heat exchanger consists of a combination of copper tubes and aluminium fins which ensures optimum heat transfer.
The EC fan is about 25 % more efficient in terms of electrical consumption and is low noise compared to the standard WWH. It is a perfect solution in shops, showrooms , warehouses, industrial or any commercial buildings.
EC fan motor as standard
low electricity consumption
low sound leveld
0-10 V. stepless speed controller adjusts air volume
applicable for all water temperatures
horizontal or vertical air discharge
extra louvres available
4-way down flow plenum for suspended ceilings
long lifetime
Heat emission
0kW - 54.4kW
Air volume
0m³/h - 8500m³/h
Max. throw horizontal
25m
Max. throw vertical
8m
Connection voltage
230V - 230V
Number of phases
1
Nominal current
1.8A
Max. electric power input
400W
Adjustable fins on exhaust side
Yes
Material heat exchanger
Aluminium/copper
Fan type
Axial
EC ventilator as standard
Yes
Sound pressure level at height of 5 metres
0dB(A) - 56dB(A)
Height
834mm
Width
834mm
Depth
530mm
Nominal diameter
1 inch (25)
Water-side resistance at dT 20 °C
7kPa
Max. operating pressure
500kPa
Water content
2.2l
Weight including filling
61kg
