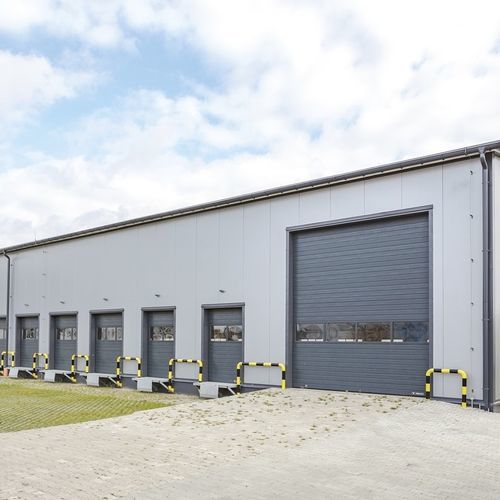

Sectional industrial door MakroPro 100 2.0 series

metalautomaticsecurity

Each element of the MakroPro 100 2.0 door series was designed with utmost attention to detail, all the while bearing in mind that the ready product will have to face tough requirements. The technological solutions that we used are unique throughout the market and ensure a high degree of safety and durability of the entire design, as well as easy fitting and servicing. MakroPro 100 2.0 • Guaranteed no. of cycles: 100 000. • SI series GfA electric drive unit • Panel heat transfer coefficient: U=0.48 [W/m2xK]. • Watertightness class: 2. • Wind load strength class: 3. • Air permeability: 4. • Acoustic insulation: Rw=23/24 [dB] without/with a wicket. • Reaction to fire NRO: fire properties – B, smoke production – s2, flaming droplets – d0. • Safety: cable break protection (2x) • Thickness of the opening frame 2 [mm] / guide 2 [mm]. • Single, quiet guiding rollers with a bush fitting. • Double safety solution for guides preventing guiding rollers from derailing. MakroPro ALU 100 2.0 • Guaranteed no. of cycles: 100 000. • SI series GfA electric drive unit • Bottom steel panel infilled with freon-free polyurethane foam • Heat transfer coefficient – as provided on the door nameplate. • Watertightness class 2 • Wind load resistance class 3 • Wind load resistance class 4 (for doors with reinforcement) • Air permeability: 4. • Acoustic insulation: Rw=23/25 [dB] (without/with a wicket). • Safety: cable break protection (2x) • Thickness of the opening frame 2 [mm] / guide 2 [mm]. • Quiet guiding rollers with a bush fitting. • Double safety solution for guides preventing guiding rollers from derailing.
